1. Hard rules
The machine bed is made of Meehanite castings
The three axes of the machine tool adopt an ultra-wide rectangular guide rail structure, making the machine tool highly rigid.
2. Line rail
The machine bed is made of Meehanite castings
The three axes of the machine tool adopt roller linear guides
The machine tool has two built-in spiral chip conveyors and an external chain chip conveyor at the front end.
|
Specifications |
units |
VMC1100 |
VMC1000 |
VMC855 |
VMC850 |

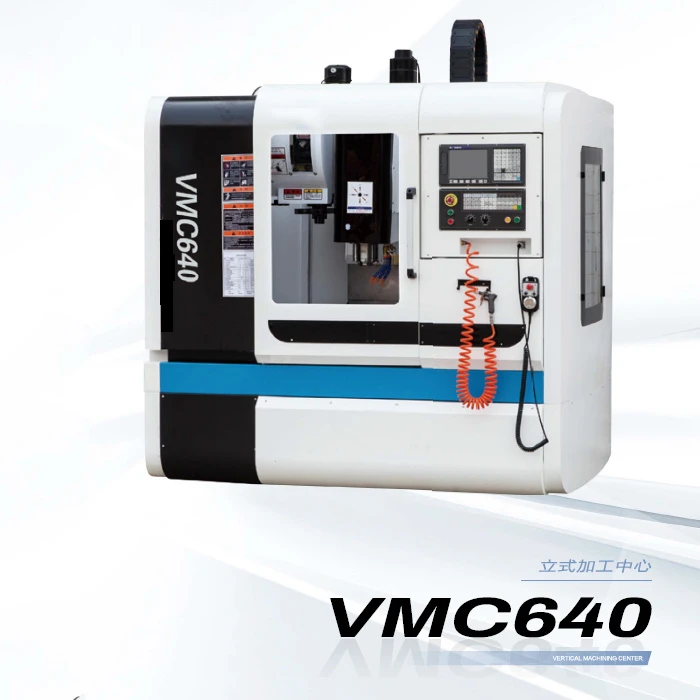

VMC640 |
|
Table travel (X,Y,Z) |
mm |
1100*600*600 |
1000*550*600 |
850/550/600 |
800*500*550 |
650*400*500 |
|
Table size |
mm |
1300*600 |
1200*550 |
100-700 |
1000*550 |
920*400 |
|
Number/Width/Distance of T-slot |
mm |
4-18-125 |
5-18-100 |
5-18-100 |
5-18-90 |
3-14-120 |
|
Max. load of table |
kg |
1000 |
500 |
500 |
500 |
300 |
|
Distance from spindle nose to table surface |
mm |
150-750 |
100-700 |
150-650 |
150-700 |
120-620 |
|
Distance from spindle axis to column guideway |
mm |
630 |
620 |
560 |
610 |
475 |
|
Rapid feed speed |
m/min |
36,36,30 |
36*36*30 |
24/24/18 |
30/30/24 |
30/30/18 |
|
Feed speed |
mm/min |
1-15000 |
1-10000 |
10-1000 |
1-10000 |
1-10000 |
|
Taper of spindle |
BT40 |
BT40 |
BT40 |
BT40 |
BT40 |
|
|
Spindle speed range |
rpm |
40-6000 |
40-6000 |
40-6000 |
40-6000 |
40-6000 |
|
Spindle motor power |
kw |
11/15 |
7.5/11 |
7.5 |
11/15 |
5.5/7.5 |
|
Tool magazine capability |
qty |
24 |
24 |
24 |
24 |
16 |
|
Max. weight of tool |
kg |
8 |
8 |
8 |
8 |
8 |
|
Max. dimension of tool |
mm |
80 |
80/150 |
80/150 |
￠130*300 |
80 |
|
Positioning accuracy |
mm |
±0.005/300JIS |
±0.005/300JIS |
±0.005/300JIS |
±0.005/300JIS |
±0.005/300JIS |
|
Repeat positioning accuracy |
mm |
±0.003/300JIS |
±0.003/300JIS |
±0.003/300JIS |
±0.003/300JIS |
±0.003JIS |
|
Min. time of tool change |
sec |
3 |
3 |
3 |
1.75 |
3 |
|
System standard configuration |
FANUC OI MF(Customers can choose) |
|||||
|
Overall dimension |
mm |
4100*2520*2800 |
2920*2180*2800 |
2620*2260*2600 |
2550*2280*2800 |
2180*2535*2280 |
|
Machine weight |
kg |
6700 |
5800 |
5500 |
5000 |
3500 |
