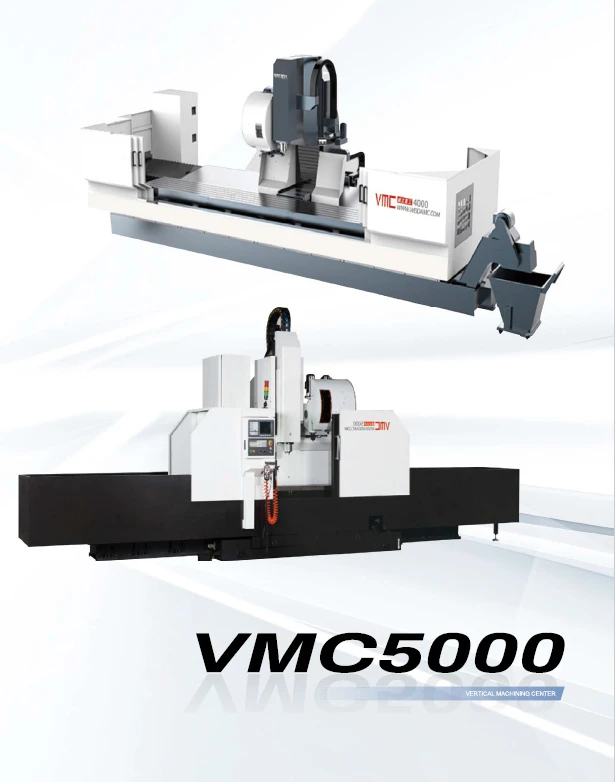

- The machine tool is made of Meehanite cast iron to ensure the overall rigidity and stability of the machine tool.
- The three axes use Taiwan's Shangyin rolling linear guides to ensure the accuracy and rigidity of the machine tool during processing.
- Taiwan's famous brand high-speed, high-precision direct-coupled 12,000-rpm spindle.
|
Specifications |
Units |
VMC5000 |
VMC4000 |
VMC3000 |
|
Table travel (X,Y,Z) |
mm |
5000*500*500 |
4000*500*500 |
3000*500*500 |
|
Table size |
mm |
5000*500 |
4000*500 |
3000*500 |
|
Number/Width/Distance of T-slot |
mm |
3-18-140 |
3-18-140 |
3-18-140 |
|
Max. load of table |
kg |
1500 |
1500 |
1500 |
|
Distance from spindle nose to table surface |
mm |
150-650 |
15-650 |
15-650 |
|
Distance from spindle axis to column guideway |
mm |
500 |
500 |
500 |
|
Rapid feed speed |
m/min |
15/24/24 |
15/24/24 |
15/24/24 |
|
Feed speed |
Mm/min |
2.5-10000 |
2.5-1000 |
2.5-1000 |
|
Taper of spindle |
BT40 |
BT40 |
BT40 |
|
|
Spindle speed range |
rpm |
60-10000 |
60-10000 |
60-10000 |
|
Spindle motor power |
kw |
7.5/11 |
7.5/11 |
7.5/11 |
|
Tool magazine capability |
qty |
24 |
24 |
24 |
|
Max. weight of tool |
kg |
8 |
8 |
8 |
|
Max. dimension of tool |
mm |
150*300 |
150*300 |
150*300 |
|
Positioning accuracy |
mm |
±0.005/300JIS |
±0.005/300JIS |
±0.005/300JIS |
|
Repeat positioning accuracy |
mm |
±0.003/300JIS |
±0.003/300JIS |
±0.003JIS |
|
Min. time of tool change |
sec |
3 |
3 |
3 |
|
System standard configuration |
FANUC OI MF(Customers can choose) |
|||
|
Overall dimension |
mm |
|||
|
Machine weight |
kg |
15000 |
13500 |
12000 |
