- Widely used in many fields such as aerospace, energy and nuclear power, automobiles and ships, medical molds, etc.
- Five-axis bridge U-shaped frame layout ensures that the whole machine has sufficient strength, rigidity and high stability
- The operation and processing space is ergonomically designed, convenient and comfortable
- A variety of functional components are optional to optimize motion coordinate parameters and improve machine tool dynamic performance and processing efficiency.
|
Specifications |
Units |
DMC800u |
CMC650U |

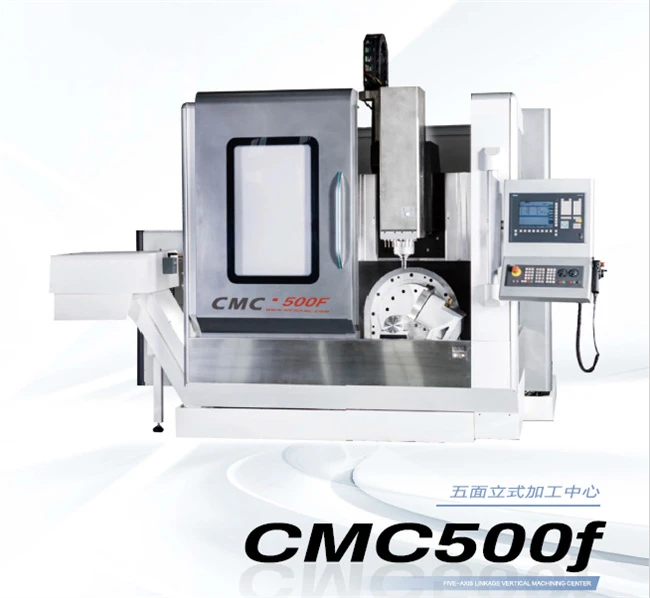

CMC500f |
|
Working desk size |
mm |
￠800 |
￠650*540 |
￠630*500 |
|
Workbench T-slot |
mm |
14 |
14 |
14 |
|
Workbench center hole |
mm |
￠50 |
￠50 |
￠30 |
|
Max. load of table |
Kg |
1200 |
300 |
200 |
|
X-axis travel |
mm |
850 |
650 |
550 |
|
Y-axis travel |
mm |
850 |
520 |
450 |
|
Z-axis travel |
mm |
600 |
475 |
400 |
|
A-axis rotation range |
º |
±120 |
±120 |
-5/110 |
|
C-axis rotation range |
º |
360 |
360 |
360 |
|
Distance from spindle nose to table surface |
mm |
150-750 |
150-625 |
150-550 |
|
Taper of spindle |
HSK-A63 |
BBT40 |
BBT40 |
|
|
Spindle speed range |
rpm |
14000 |
12000 |
10000 |
|
Spindle motor power |
Kw |
25 |
7.5 |
7.5 |
|
Spindle torque |
Nm |
91.7 |
45 |
35.8/70 |
|
Tool magaine form |
Flat chain type |
Disc type |
Disc type |
|
|
Tool magazine capacity |
Bundle |
30 |
24 |
24 |
|
Max.tool diameter(full knife/neighbor knife) |
mm |
￠78/￠150 |
￠78/￠150 |
￠78/￠150 |
|
Max. tool length |
mm |
300 |
300 |
300 |
|
Max. tool weight |
kg |
8 |
8 |
8 |
|
Min. time of tool change(T-T) |
s |
2 |
1.56 |
1.56 |
|
Fast movement speed(X/Y/Z) |
mm/min |
3200/3200/3200 |
4200/4200/4200 |
4200/4200/4200 |
|
Cutting feed rate(X/Y/Z) |
mm/min |
1-10000/1-10000/1-10000 |
1-10000/1-10000/1-10000 |
1-10000/1-10000/1-10000 |
|
Postitioning accuracy(X/Y/Z) |
mm |
±0.005/3000JIS |
±0.005/3000JIS |
±0.005/3000JIS |
|
Postitioning accuracy(A/C) |
º |
±5 |
±5 |
±5 |
|
Repeatability(X/Y/Z) |
mm |
±0.003JIS |
±0.003JIS |
±0.003JIS |
|
Repeatability(X/Y/Z) |
" |
4 |
4 |
4 |
|
Machine weight |
kg |
18000 |
8500 |
6500 |
|
Overall dimension |
mm |
5500*4000*3500 |
3970/3210/2800 |
3500*3400*2700 |
|
System Configuration |
FANUC SIEMENS(customers can choose by themselves) |
|||
