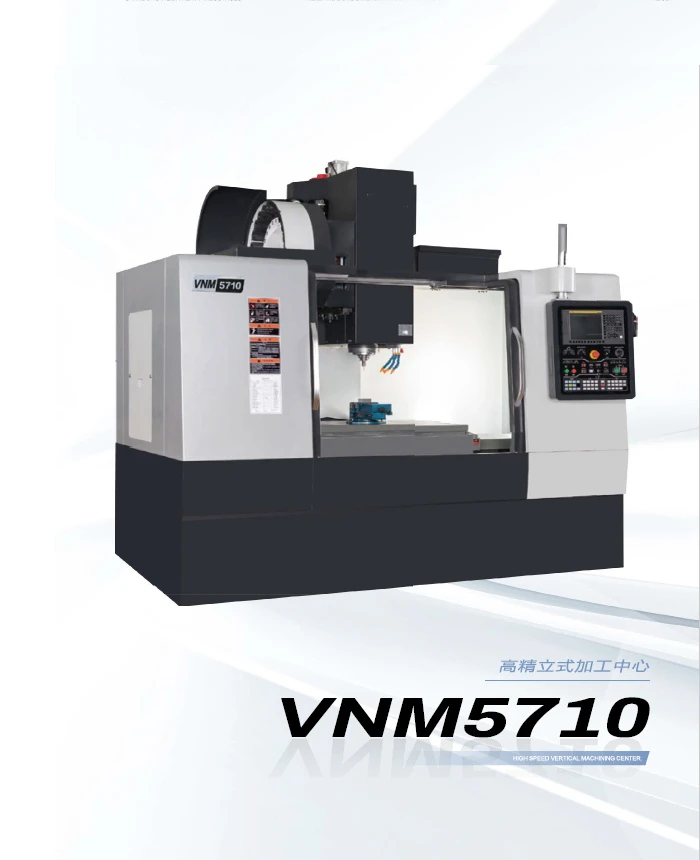

1. Cross slide structure, herringbone column
2. The bed, column, slide, worktable and spindle box are super rigid.
3. X, Y, Z three-way guide rails are roller linear guide rails
4. The three-axis motor and screw are directly connected.
5. Short nose end direct-connected spindle unit structure, higher rigidity.
|
Specifications |
units |
VNM5710 |
|
Table size |
mm |
1300*570 |
|
Number/width/Distance of T-slot |
mm |
18-4-125 |
|
Max. load of table |
kg |
1000 |
|
X-axis travel |
mm |
1050 |
|
Y-axis travel |
mm |
570 |
|
Z-axis travel |
mm |
600 |
|
Distance from spindle nose totable surface |
mm |
150-750 |
|
Distance from spindle axis to column guideway |
mm |
590 |
|
Taper of spindle |
BT40 |
|
|
Spindle speed range |
rpm |
10000 |
|
Spindle motor power |
kw |
11/18.5 |
|
Spindle torque |
Nm |
52.5/118 |
|
Tool magaine form |
Disc type |
|
|
Tool magazine capacity |
Bundle |
24 |
|
Max.tool diameter(full knife/neighbor knife) |
mm |
￠80/￠150 |
|
Max. tool length |
mm |
300 |
|
Max. tool weight |
kg |
8 |
|
Min. time of tool change(T-T) |
s |
1.55 |
|
Fast movement speed(X/Y/Z) |
mm/min |
36000/36000/30000 |
|
Cutting feed rate(X/Y/Z) |
mm/min |
1-15000/1-15000/1-15000 |
|
Postitioning accuracy(X/Y/Z |
mm |
±0.005/3000JIS |
|
Repeatability(X/Y/Z) |
mm |
±0.003JIS |
|
Total machine capacity |
KVA |
25 |
|
System standard configuration |
FANUC OI MF(Customers can choose) |
|
|
Machine weight |
kg |
25 |
|
Overall dimension |
mm |
3150*2450*2750 |
