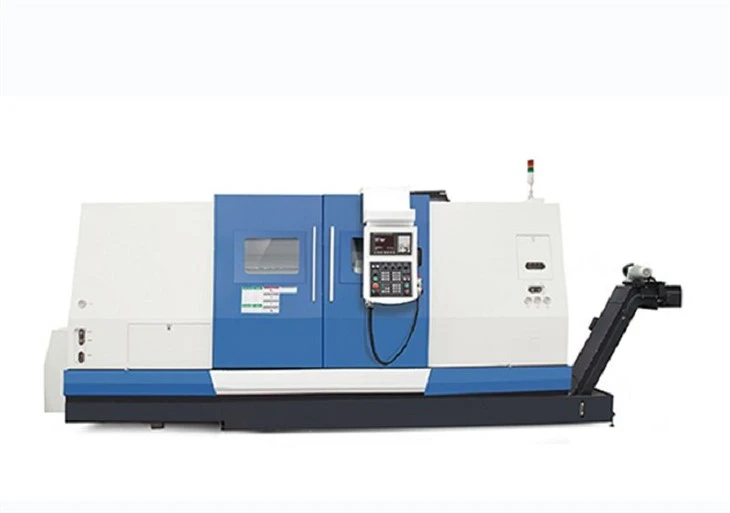

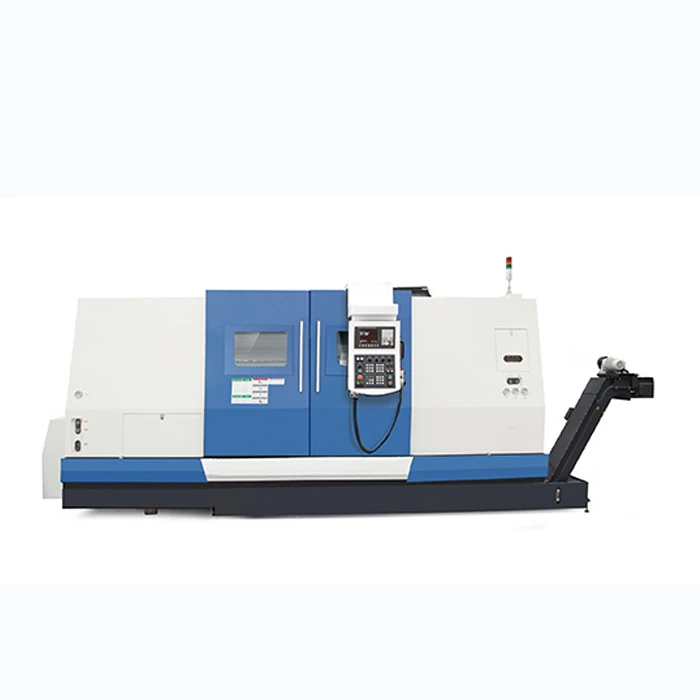

- The overall tilting bed design provides high rigidity and smoother cutting;
- Finite element structural analysis shows that the casting reinforcement layout is reasonable and the stress effect is good;
- The X/Z axis linear rails all adopt roller guide rails to ensure the rigidity of the machine tool;
- It can achieve up to four-axis linkage of X, Y, Z, and C, and can process eccentric holes and mill wide slots;
- Can be configured with dual spindles, dual tool holders, and programmable servo tailstock.
|
Specifications |
Units |
NL322M |
NL301Y |
NL302Y |
|
Max.rotation diameter |
mm |
￠314 |
￠620 |
￠620 |
|
Max.cutting diameter |
mm |
￠314 |
￠300 |
￠300 |
|
Max.cutting length |
mm |
550 |
300 |
550 |
|
Spindle maximum speed |
rpm |
4500 |
6000 |
6000 |
|
Spindle power |
KW |
22/25 |
11/15 |
11/15 |
|
Spindle end model |
ISO |
A2-6 |
A2-6 |
A2-6 |
|
Spindle through hole diameter |
mm |
￠66 |
￠56 |
￠56 |
|
Spindle hydraulic chuck |
inch |
8 |
8 |
8 |
|
Max. speed of sub-spindle |
rpm |
4500 |
||
|
Sub-spindle power |
kw |
22/25 |
||
|
Sub-spindle end model |
ISO |
A2-6 |
||
|
Sub-spindle through hole diameter |
mm |
￠56 |
||
|
Sub-spindle hydraulic chuck |
mm |
8 |
||
|
Sub-spindle stroke |
mm |
650 |
||
|
X1/X2 stroke |
mm |
200 |
210(X) |
210(X) |
|
Z1/Z2 stroke |
mm |
650 |
400(Z) |
600(Z) |
|
Y stroke |
mm |
100(±50) |
105(±52.5) |
105(±52.5) |
|
X1/X2 rapid movement speed |
m/min |
30 |
30(X) |
30(X) |
|
Z1/Z2 rapid movement speed |
m/min |
36 |
30(Z) |
30/10(Z1/Z2) |
|
Y rapid movement speed |
mm |
15 |
10 |
10 |
|
Number of turret stations |
mm |
12*2(BMT55) |
12(BMT55) |
12(BMT55) |
|
Max. speed power tool |
rpm |
5000 |
6000 |
6000 |
|
Turning tool holder specifications |
mm |
25*25 |
25*25 |
25*25 |
|
Boring tool holder max. diameter |
mm |
￠40 |
￠32 |
￠32 |
|
Max. drilling capacity |
mm |
￠16*0.2 |
￠14*0.16 |
￠14*0.16 |
|
Max. tapping capacity |
mm |
M14*2/m20*1.5 |
M10*1.5/m24*1 |
M10*1.5/M24*1 |
|
Max. slotting capacity |
mm |
￠20*12*40 |
￠16*12*40 |
￠16*12*40 |
|
X1/X2 positioning accuracy |
mm |
0.01 |
0.08 |
0.08 |
|
Z1/Z2 positioning accuracy |
mm |
0.01 |
0.08 |
0.08 |
|
y positioning accuracy |
mm |
0.01 |
0.08 |
0.08 |
|
C1/C2 positioning accuracy |
mm |
51" |
51" |
51" |
|
X1/X2 Repeatability |
mm |
0.005 |
0.004 |
0.004 |
|
Z1/Z2 Repeatability |
mm |
0.005 |
0.004 |
0.004 |
|
Y Repeatability |
mm |
0.005 |
0.004 |
0.004 |
|
C1/C2 Repeatability |
20" |
20" |
20" |
|
|
Total machine capacity |
kva |
66 |
45 |
45 |
|
Mchine overall dimension (L*W*H) |
mm |
4500*2500*2350 |
3855*1940*1950 |
4105*1940*1950 |
|
Machine weight |
kg |
3500 |
3800 |
4200 |
|
Servo motor torque |
N.m |
12 |
11 |
11 |
|
CNC system |
Fanuc (customers choose) |
|||
