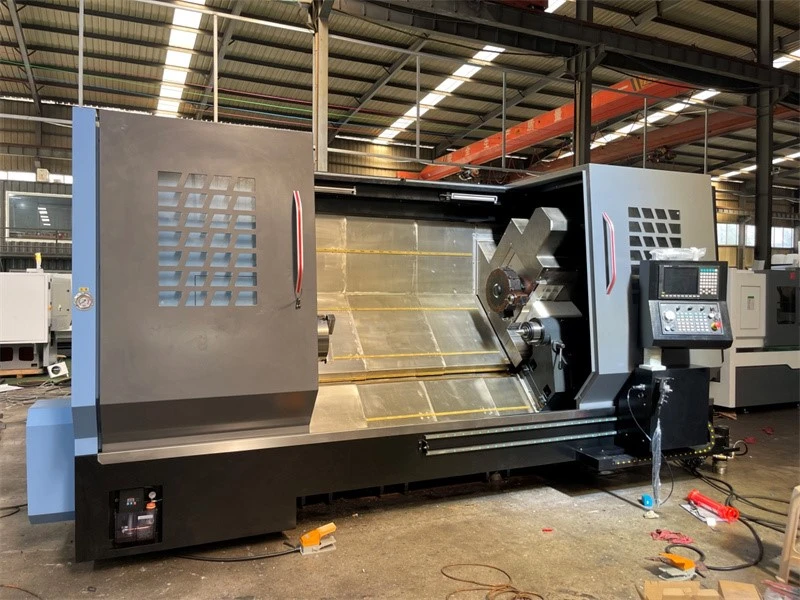

- The horizontal turning center is a three-axis linkage, semi-closed-loop control, with C-axis indexing function and equipped with a power tool holder, with milling, drilling, tapping and other functions;
- The overall bed design has the advantages of compact structure, high rigidity, smooth chip removal, and easy operation;
- The machine tool is fully enclosed for protection, with automatic chip removal, automatic lubrication and automatic cooling;
- This CNC machine tool is designed for parts with complex geometric shapes, various sizes, and high precision requirements. The power tool can mill axial and radial grooves, mill planes, drill, ream, tap, etc.
|
Specifications |
Units |
NL322T |
NL504T |
NLHL635T |
|
Max. rotation diameter of bed |
mm |
￠570 |
￠600 |
￠720 |
|
Max. rotation diameter of bed saddle |
mm |
￠400 |
￠450 |
￠530 |
|
Max. cutting diameter |
mm |
￠320 |
￠430 |
￠630 |
|
Max. cutting length |
mm |
475 |
1000 |
1500 |
|
Max. diameter of the bar through |
mm |
￠51 |
￠51 |
￠74 |
|
Spindle maximum speed |
mm |
4000 |
3000 |
2000 |
|
Spindle end modle |
ISO |
A2-6 |
A2-6 |
A2-11 |
|
Spindle through hole diameter |
mm |
￠65 |
￠65 |
￠100 |
|
Tailstock sleeve diameter |
mm |
￠100 |
￠100 |
￠160 |
|
Tailstock sleeve travel |
100 |
100 |
180 |
|
|
Stroke X/Z |
mm |
235/530 |
295/1050 |
425/1600 |
|
Quickly move X/Z |
m/min |
24/30 |
12/16 |
8/12 |
|
X-axis screw diameter/pitch |
mm |
￠32/8 |
￠32/8 |
￠40/10 |
|
Z-axis screw diameter/pitch |
mm |
￠32/12 |
￠40/12 |
￠50/10 |
|
Hydraulic turret station number |
12(BMT55) |
12(BMT55) |
12(BMT65) |
|
|
External turning tool holder specifications |
mm |
25*25 |
25*25 |
32*25 |
|
External turning tool holder specifications |
mm |
25*25 |
25*25 |
25*25 |
|
Boring tool holder maximum diameter |
mm |
￠32 |
￠32 |
￠50 |
|
X-axis positioning accuracy |
mm |
0.006 |
0.006 |
0.01 |
|
Z-axis positioning accuracy |
mm |
0.006 |
0.006 |
0.012 |
|
X-axis repeat positioning accuracy |
mm |
0.004 |
0.004 |
0.005 |
|
Z-axis repeat positioning accuracy |
mm |
0.004 |
0.004 |
0.007 |
|
Total machine capacity |
kvA |
40 |
40 |
55 |
|
Main motor power |
KW |
11 |
11 |
21.2 |
|
Servo motor torque |
N.m |
11/15 |
11/11 |
20/20 |
|
Machine weight |
kg |
4200 |
4800 |
13000 |
|
CNC system |
Fanuc SIEMENS (customers choose) |
|||
