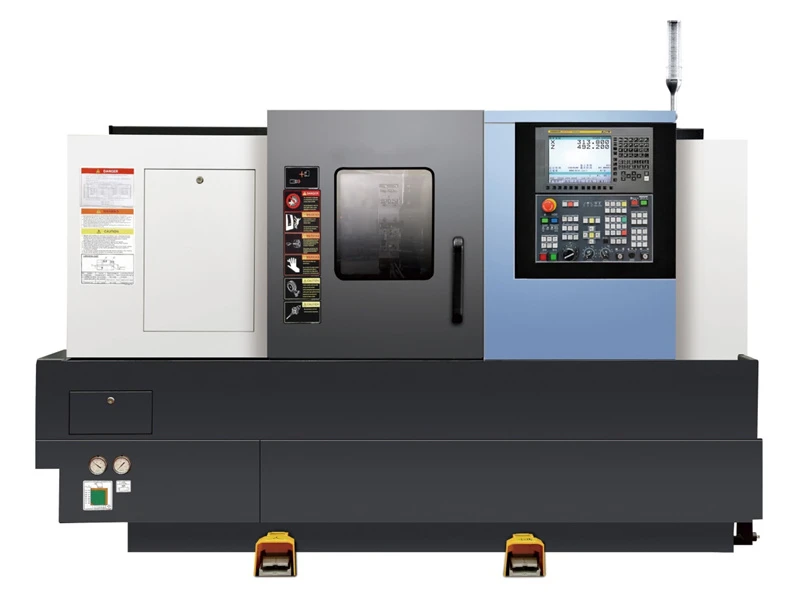

- Integral funnel-type lathe, integrated casting, overall widening, improved rigidity, and convenient chip removal;
- 30-degree inclined bed saddle structure and rolling guide rail design;
- Mechanical spindle, electric spindle modular design, electric spindle adopts air cooling system;
- Independently developed 12-station servo tool holder and integrated turret box design, greatly improving the turret rigidity;
- The overall funnel-type bed structure is more suitable for automatic line layout;
- Refined design of drive components, suitable for high-standard parts processing;
- The machine tool has a compact structure and a small footprint.
|
Specifications |
Units |
NL202V |
|
Max. rotation diameter of bed |
mm |
￠550 |
|
Max. rotation diameter of bed saddle |
mm |
￠280 |
|
Max. cutting diameter |
mm |
￠300 |
|
Max. cutting length |
mm |
560 |
|
Max. diameter of the bar through |
mm |
￠51 |
|
Spindle maximum speed |
mm |
4600 |
|
Spindle end modle |
ISO |
A2-6 |
|
Spindle through hole diameter |
mm |
￠61 |
|
Tailstock sleeve diameter |
mm |
￠65 |
|
Tailstock sleeve travel |
mm |
80 |
|
Stroke X/Z |
mm |
190/580 |
|
Quickly move X/Z |
m/min |
30/30 |
|
X-axis screw diameter/pitch |
mm |
￠32/10 |
|
Z-axis screw diameter/pitch |
mm |
￠32/12 |
|
Hydraulic turret station number |
12 |
|
|
External turning tool holder specifications |
mm |
25*25 |
|
External turning tool holder specifications |
mm |
25*25 |
|
Boring tool holder maximum diameter |
mm |
￠40 |
|
X-axis positioning accuracy |
mm |
0.008 |
|
Z-axis positioning accuracy |
mm |
0.008 |
|
X-axis repeat positioning accuracy |
mm |
0.004 |
|
Z-axis repeat positioning accuracy |
mm |
0.004 |
|
Total machine capacity |
kvA |
25 |
|
Main motor power |
KW |
11/15 |
|
Servo motor torque |
N.m |
7/7 |
|
Machine weight |
kg |
3700 |
|
CNC system |
Fanuc SIEMENS (customers choose) |
|
