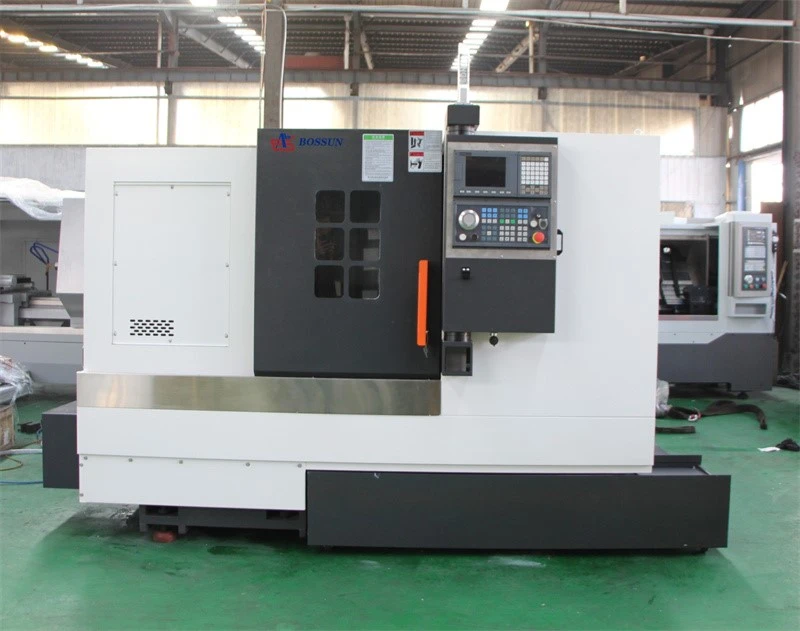

- The ultra-high-precision curved gear clutch is used to precisely position the cutterhead to ensure sufficient turret rigidity, stability and durability under any cutting situation.
- Using double bearing seats, heat-treated and precision-ground C3 grade ball guide screws ensure the highest accuracy and durability.
- The high-rigidity machine head and the heat sink are integrally cast to help dissipate heat from the spindle, reduce the thermal position of the body, and reduce the amount of errors caused by temperature rise. Finite element analysis (FEM) is used to optimize the design of the reinforced ribs of the one-piece bed, and the machine Strength is increased by 20% compared with traditional design
|
Specifications |
unit |
TCK52 |
Tck65 |
|
Swing over bed |
mm |
￠570 |
￠600 |
|
Maximum turning diameter on carriage |
mm |
￠280 |
￠290 |
|
Effective turning length |
mm |
520/600/750 |
|
|
Spindle head form |
mm |
A2-6 |
A2-6/8 |
|
Spindle motor power |
Kw |
11-15(Servo) |
11-15(Servo) |
|
Maximum spindle speed |
r/min |
4200/3500 |
3500/2500 |
|
Through hole diameter of spindle |
mm |
￠66/79 |
￠79/105 |
|
Inner diameter of pull through hole |
mm |
￠52/65 |
￠65/90 |
|
X-axis stroke |
mm |
270 |
250 |
|
Z-axis stroke |
mm |
600/800 |
650 |
|
Servo motor torque X/Z |
N.m |
10/10 |
10/10 |
|
Turiet form |
mm |
12 station servo/Hydraulic(Optional powered tool turret) |
|
|
Clamping system |
8"/10" |
10"/12" |
|
|
Tool size |
mm |
25*25/40 |
25*25/40 |
|
Specification of X/Z lead screw |
3210/4010 |
3210/4010 |
|
|
Repeat positioning accuracy |
mm |
±0.004 |
±0.004 |
|
Tailstock sleeve diameter/stroke |
mm |
￠75/120 |
￠80/80 |
|
Taper hole in sleeve |
MT |
5 |
5 |
|
Dimensions |
m |
2.85*1.7*1.75 |
3.0*1.85*1.7 |
|
Machine weight(approx.) |
T |
4/4.5 |
4.2 |
