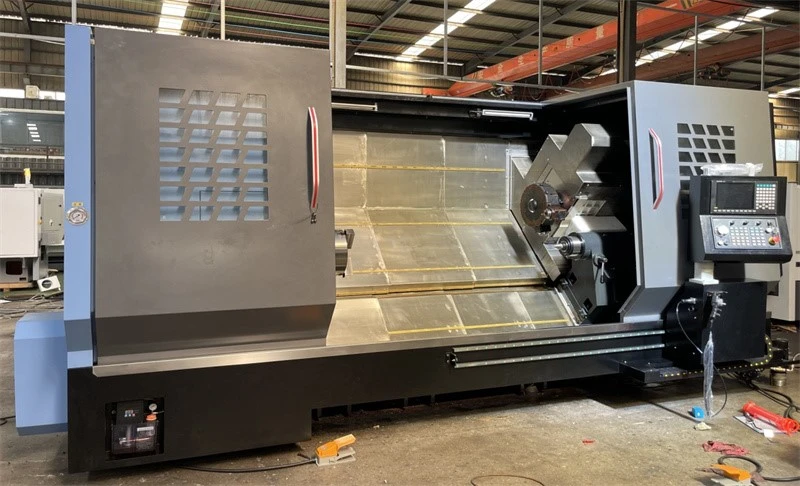

- Doubie turrets simultaneously doubie the machining efficiency
- Equipped with automatic brackets to assist loading and unloading
- Can be connected to automated production lines
- Eccentric tooling automatic counteerweight
- It is suitable for all kinds of wehicle axle processingl
|
Specifications |
unit |
TCK700S |
|
Swing over bed |
mm |
￠780 |
|
Maximum turning diameter on carriage |
mm |
￠500 |
|
Maximum processing length |
mm |
2500 |
|
Spindle head form |
mm |
A2-11/8 |
|
Spindle motor power |
Kw |
22 |
|
Maximum spindle speed |
r/min |
2000 |
|
Through hole diameter of spindle |
mm |
￠88/105 |
|
Tilt angle |
DEG |
45° |
|
Clamping system |
mm |
Hydraulic chuck |
|
Servo motor torque X/Z |
N.m |
22/22 |
|
X-axis stroke |
mm |
350 |
|
Z-axis stroke |
mm |
800+1500 |
|
Turiet form |
mm |
12 station servo/Hydraulic |
|
Specification of X/Z lead screw |
5008/6312 |
|
|
Turning length with chuck |
mm |
25/32 |
|
Repeat positioning accuracy |
mm |
±0.004 |
|
Tailstock sleeve diameter/stroke |
mm |
2200 |
|
Taper hole in sleeve |
MT |
6 |
|
Dimensions |
m |
6.5*2.3*2.65 |
|
Machine weight(approx.) |
T |
11 |
