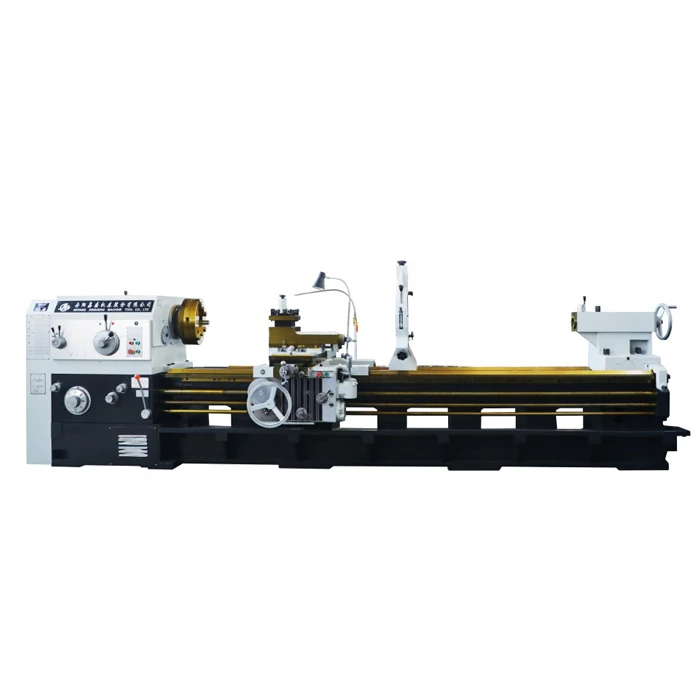

The CW6163B/6180B/6194 ordinary horizontal lathe series is mainly suitable for turning internal and external cylinders, conical surfaces and other rotating parts. It can process various conventional metric and inch threads. This series of lathes also has the following features:
1. The side walls of the bed are made of double rib plates, and the shape of the inner ribs is a combination of box and diagonal ribs. The rigidity of the machine tool is higher than that of ordinary lathes, and the accuracy is stable and it can perform powerful cutting.
2. The slide plate is equipped with a fast-moving structure, which can be operated visually with a single handle. The spindle can rotate forward and reverse and brake. The user can choose hydraulic control or manual mechanical control.
3. The bed saddle guide rail is made of bonded "TSF" soft belt wear-resistant material .
4. The small tool holder can automatically move the tool according to user needs.
|
Project |
unit |
CW6163B |
CW6180B |
|
Capacities |
|||
|
Maximum rotation diameter of the bed |
mm |
630 |
800 |
|
Maximum cutting diameter |
mm |
350 |
480 |
|
Maximum work piece lenght |
mm |
750/1000/1500/2000/3000/4000/5000/6000 |
|
|
Maximum cutting lenght |
mm |
600/850/1350/1850/2850/3850/4850/5850 |
|
|
Bed rail width |
mm |
550 |
550 |
|
Spindle |
|||
|
Spindle end code |
mm |
C11 |
|
|
Spindle through hole diameter |
mm |
100 |
|
|
Spindle front end tapered hole |
01:20/120 |
||
|
Spindle speed range |
r/min |
Forward:7.5-1000 Reverse:7-750 |
|
|
Spindle speed types |
18 |
||
|
Feed motion |
|||
|
Longitudinal and horizontal feed range |
64; 0.1-24.32 |
||
|
Horizontal and longitudinal feed ratio |
1/2 |
||
|
Lead screw pitch |
mm |
12 |
12 |
|
Metric thread number range |
50kind 1-240 |
||
|
Inch thread number range |
26kind 14-1 |
||
|
Module thread number range |
53kind 0.5-120 |
||
|
Diameter pitch thread number range |
24kind 28-1 |
||
|
Rapid movement speed of slide |
mm/min |
4000 |
|
|
Tool post |
|||
|
Spindle center to tool mounting base |
mm |
33 |
|
|
Vertical distance |
|||
|
Tool holder rotation angle |
º |
±90º |
|
|
Maximum lateral travel of lower tool rest |
mm |
440/500 |
|
|
Maximum stroke of upper tool rest |
mm |
200 |
|
|
Toolbar section |
mm |
32 |
|
|
Tailstock |
|||
|
Tailstock sieeve diameter |
mm |
100 |
|
|
Tailstock sleeve travel |
mm |
250 |
|
|
Tailstock sleeve tapered hole |
Morse6 |
||
|
Others |
|||
|
Main motor power |
kw |
11 |
|
|
Machine length |
mm |
2958/3275/3275/4225/5225/6275/7355/8355 |
|
|
Machine width |
mm |
1622/1730 |
|
|
Machine height |
mm |
1393/1450 |
|
