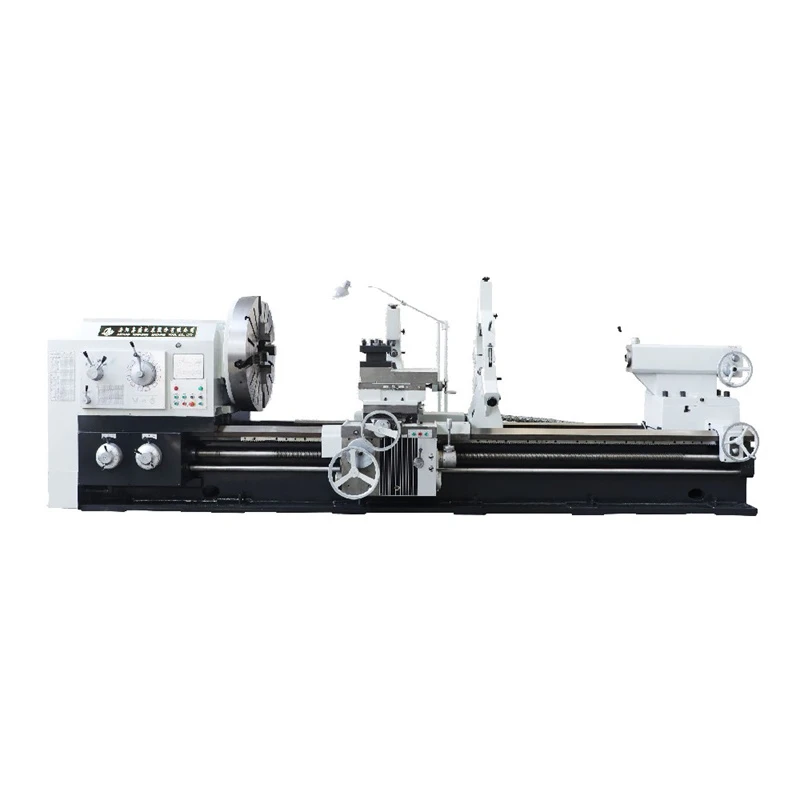

CW61100B CW61125B CW61160B horizontal lathe is suitable for processing large and medium-sized parts of castings, steel parts and non-ferrous metals. It can turn outer circles, inner holes, end faces, grooving, drilling, boring and nesting, and can turn metric , inch, module and diameter section and other internal and external threads, the upper tool holder can be used to motor-turn short conical surfaces alone, and the upper tool holder can also be used in conjunction with longitudinal feed to turn long conical surfaces. The machine tool has high power, strong rigidity, wide speed range, and can perform high-speed and powerful cutting. Structural features:

1. High rigidity integral bed

The bed adopts an integral cast structural bed, with reasonable internal rib layout and high rigidity. The guide rails adopt medium-frequency quenching and grinding technology. Technological measures such as sticking anti-crawling guide rail plates are adopted on the sliding guide surface. Dynamic characteristics such as friction and damping coefficients are in the best state, avoiding the occurrence of low-speed crawling.

2. High rigidity and high precision spindle

The machine tool spindle bearings are selected from the products of domestic famous brand companies. The spindle box adopts a symmetrical structure to ensure uniform thermal deformation and avoid deviation of the spindle center. In order to reduce thermal deformation, the headboard adopts oil bath circulation lubrication. The front end of the spindle adopts a three-support structure of two-way angular contact ball bearings, which improves accuracy and enhances rigidity. The gears in the spindle box are all quenched and ground to ensure precise transmission and low noise. The carefully assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, allowing the spindle to maintain relative stability in various precisions during long-term operation.

Project	unit	CW61100B		CW61125B	CW61140B	CW61160B
Capacities
Maximum rotation diameter of the bed	mm	1000		1250	1400	1600
Maximum cutting diameter	mm	615		865	1015	1250
Maximum work piece lenght	mm	1500/2000/3000/4000/5000/6000/8000/10000/12000
Maximum cutting lenght	mm	1300/1800/2800/3800/4800/5800/7800/9800/11800
Bed rail width	mm	755
Spindle
Spindle end code	mm	A2-15(8*M22)
Spindle through hole diameter	mm	130
Spindle front end tapered hole		1:20/140
Spindle speed range	r/min	Forward:3.15-315 Reverse:3.5-291
Spindle speed types		Forward :21 reverse: 12
Feed motion
Number of vertical and horizontal feed amouns		56/56
Feed range	mm	Portrait:0.1-12; Horizontal:0.05-6;Upper knife rest:0.025-3
Metric thread number range		44;1-120mm
Inch thread number range		31;28-1/4
Module thread number range		45;0.5-60mm
Diameter pitch thread number range		38;1/2-56DP
Tool post
Vertical distance from spindle center to tool base surface	mm	48
Tool holder rotation angle		±90º
Maximum lateral travel of lower tool rest	mm	520		580	580	630
Maximum stroke of upper tool rest	mm	300
Toolbar section	mm	45(Tool holder size260*260)
Tool holder rapid traverse speed	Mm/min		Portrait:3740;Horizontal:1870;Small knife holder:935
Tailstock
Tailstock sieeve diameter	mm	160(6")
Tailstock sleeve travel	mm	300(12")
Tailstock sleeve tapered hole		Morse6
Others
Main motor power	kw	22
Machine length	mm	4600/5100/6100/7100/8100/9100/11100/13100/15100
Machine width	mm	2150
Machine height	mm	1700/1825/2150
Maximum weight of workpiece	kg	6000
