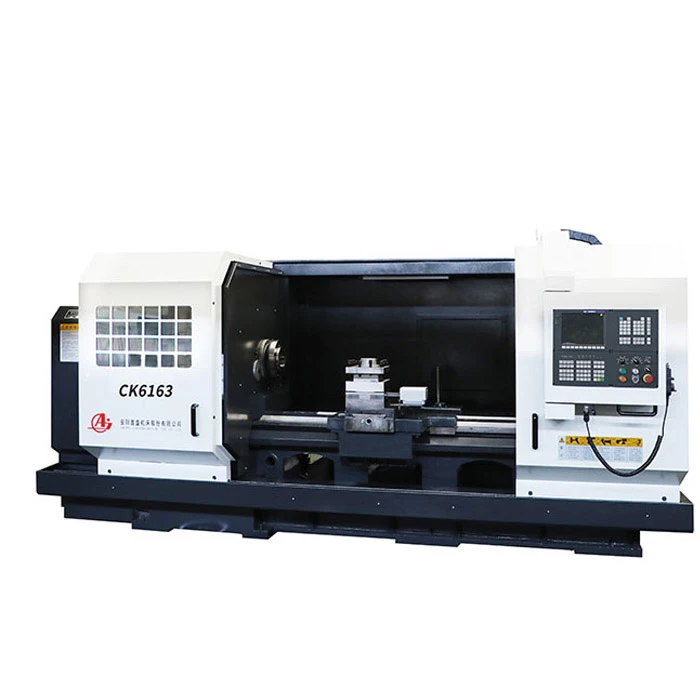

The CK6163-6180-6194 economical CNC lathe series adopts a semi-closed-loop control system and an integral bed, which is suitable for processing various complex-shaped shafts, sleeves, and disk parts, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, End faces, etc., are especially suitable for rotating processing of multiple varieties and small and medium-sized batches. It has strong process adaptability, high processing efficiency, easy programming, and simple operation. It is an ideal medium-sized mechanical processing equipment.

Project	unit	CK6163	CK6180	CK6194
Capacities
Maximum rotation diameter of bed	mm	630	800	940
Maximum cutting diameter	mm	340	510	650
Maximum work piece length	mm	750/1000/1500/2000/3000/4000/5000/6000/8000
Maximum cutting length	mm	600/850/1350/1850/2850/3750/4750/5750/7750
Bed rail width	mm	550
Spindle
Spindle end code	mm	C11
Spindle through hole diameter	mm	100
Spindle front tapered hole		Metric120
Spindle speed range	r/min	(CK)12.5-1000 (CK)10-800
Spindle speed types		Infinitely variable speed
Spindle center height	mm	315	400	470
Chuck	mm	325
Feed
Minimum feed amount in X,Z direction	mm	0.001/0.001
X,Z direction rapid movement speed	mm/min	3000/6000
Maximum travel in X direction	mm	390	475	475
Turret
Number of tool holder stations		V4 Standard configuration(V6/H6/H10)240*240
Tool holder indexing time	s	2.4
Repeatability	mm	0.009
Toolbar section	mm	32*32
Tailstock
Tailstock sleeve diameter	mm	100
Tailstock sleeve travel	mm	250
Tailstock sleeve tapered hole		Morse5
Others
Workpiece accuracy		IT6-IT7
Workpiece surface roughness	µm	Ra1.6
Main motor power	kw	11
Machine quality	t	3.5/3.7/4.0/4.5/5.0/6.1/7.1/8.0/10.2
Machine length	mm	3125/3600/4090/4630/5585/6450/7530/8520/10520
System Configuration		Fanuc Gsk (Also optional)
