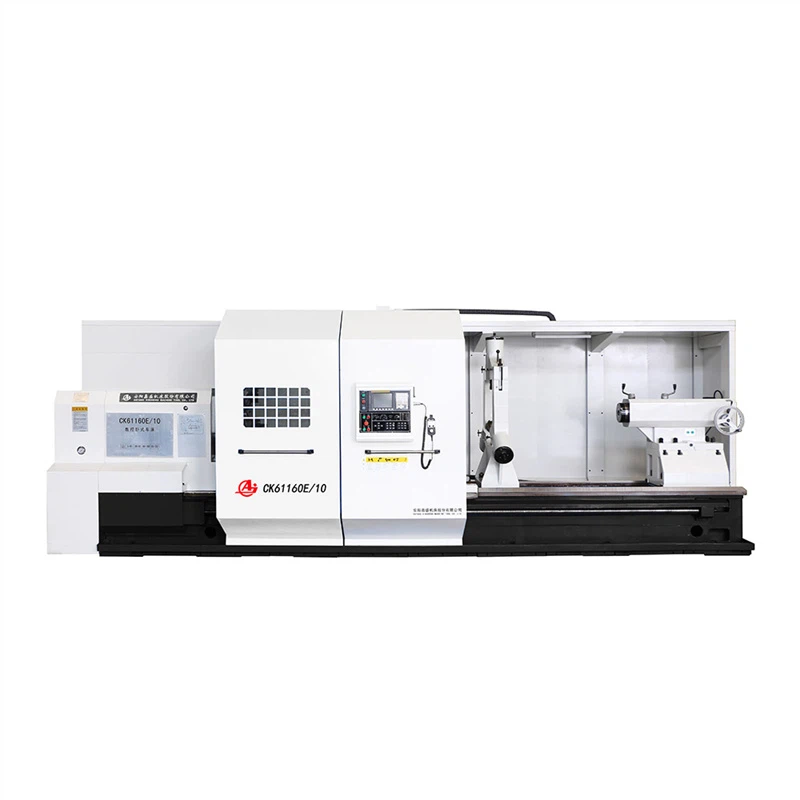

CK61100E/125E/140E/160E series large CNC lathes have semi-closed loop control function. It can bear a load of up to six tons and is suitable for processing various complex-shaped shafts, sleeves and disc parts, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, chamfering, threading, etc. It is ideal Large mechanical processing equipment. Lathe bed: integral box-shaped structure, made of high-standard cast iron (HT300) one-time mold casting, guide rail surface width 755mm, spindle box: capable of adapting to heavy cutting processing, gears are high-frequency quenched and precision ground, with high accuracy High, stable operation, low noise; large spindle diameter, supported by three-point precision heavy-load bearings, stable rotation, capable of both heavy cutting and fine turning; stepless speed change and constant linear speed cutting can be achieved.

Project		unit	CK6100E	CK61125E	CK61140E	CK61160E
Capacities
Maximum rotation diameter of bed		mm	1000	1250	1400	1640
Maximum cutting diameter		mm	630	880	1030	1250
Maximum work piece length		mm	1000/1500/2000/3000/4000/5000/6000/8000/10000/12000
Maximum cutting length		mm	730/1300/1800/2800/3800/4800/5800/7800/9800/11800
Bed rail width		mm	755
Spindle
Spindle end code		mm	A2-15
Spindle through hole diameter		mm	130
Spindle front tapered hole			Metric140
Spindle speed range		r/min	3.15-315
Spindle speed types			Infinitely variable speed
Spindle center height		mm	500	625	700	820
chuck		mm	Four claws 1000
Feed
Minimum feed amount in X,Z direction		mm	0.001/0.001
X,Z direction rapid movement speed		mm/min	3000/5000
Maximum travel in X direction		mm	570	630	700	630
Turret
Number of tool holder stations			V4 Standard configuration(V6/H6/H10)300*300
Tool holder indexing time		s	2.6
Repeatability		mm	0.011
Toolbar section		mm	40*40
Tailstock
Tailstock sleeve diameter		mm	160
Tailstock sleeve travel		mm	300
Tailstock sleeve tapered hole			Morse6
Others
Workpiece accuracy		IT7
Workpiece surface roughness	µm	Ra1.6
Main motor power	kw	30
Machine quality	t	9200/9800/10700/11600/12500/13500(CK61100E/6000 the following)
Machine length	mm	4800/5300/6300/7300/8300/9300(CK61100E/6000 the following)
System Configuration		Fanuc Gsk (Also optional)
