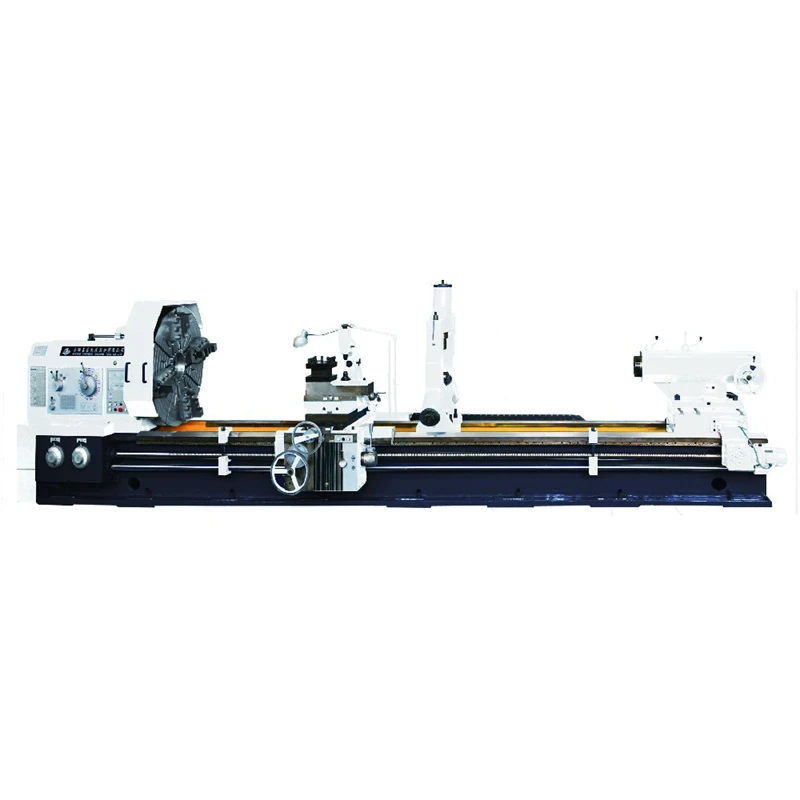

This series of horizontal lathes is carefully designed by our company based on long-term experience in producing horizontal lathes and the actual needs of users, using internationally advanced design methods and manufacturing technology, using CAD optimization design methods, and implementing the latest national accuracy standards. It is a mechatronic machine tool product that integrates multi-disciplinary and multi-category precision manufacturing technologies such as electrical, automatic control, hydraulic control and modern mechanical design. The structural performance of the machine tool is suitable, the machine tool has high dynamic and static stiffness, long service life, high processing efficiency, and all functions are safe and reliable.

Project	unit	CW61125	CW61140	CW61160
Capacities
Maximum rotation diameter of the bed	mm	1250	1400	1600
Maximum cutting diameter	mm	865	1010	1210
Maximum work piece length	mm	3000/4000/5000/6000/8000/10000/12000
Maximum cutting length	mm	2800/3800/4800/5800/7800/9800/11800
Bed rail width	mm	970
Maximum main cutting force	N	45000
Maximum workpiece weight between tips	kg	10000
Spindle
Spindle through hoie diameter	mm	130
Spindle front end taper		Metric 140
Spindle speed range	r/min	Forward:3.15-315; reverse:3.5-291
Spindle speed types		Forward:21 reverse:12
Feed motion
Number of vertical and horizontal feed amounts		56
Feed range	mm	Portrait:0.1-12 Horizontal: 0.05-6 Upper knife rest:0.025-3
Metric thread number range		44; 1-120mm
Inch thread number range		31; 28-1/4
Module thread number range		45;0.5-60mm
Diameter pitch thread number range		38;1/2-56DP
Tool post
Maximum lateral travel of lower tool rest	mm	650
Maximum stroke of upper tool rest	mm	300
Toolbar section	mm	45(Tool holder size:260*260)
Tool holde rotation angle	º	±90º
Tool holder rapid movement speed	mm/min	Portrait:3740;Horizontal:1870;Upper knife rest:935
Saddle maximum travel	mm	2900/3900/4900/5900/7900/9900/11900
Tailstock
Tailstock sleeve diameter	mm	220
Tailstock sleeve travel	mm	300
Tailstock sleeve tapered hole		Morse6
Others
Main motor power	kw	22
Machine length	mm	6020/7020/8020/9020/11020/13020/15020
Machine width	mm	1995
Machine height	mm	2175/2325/2525
