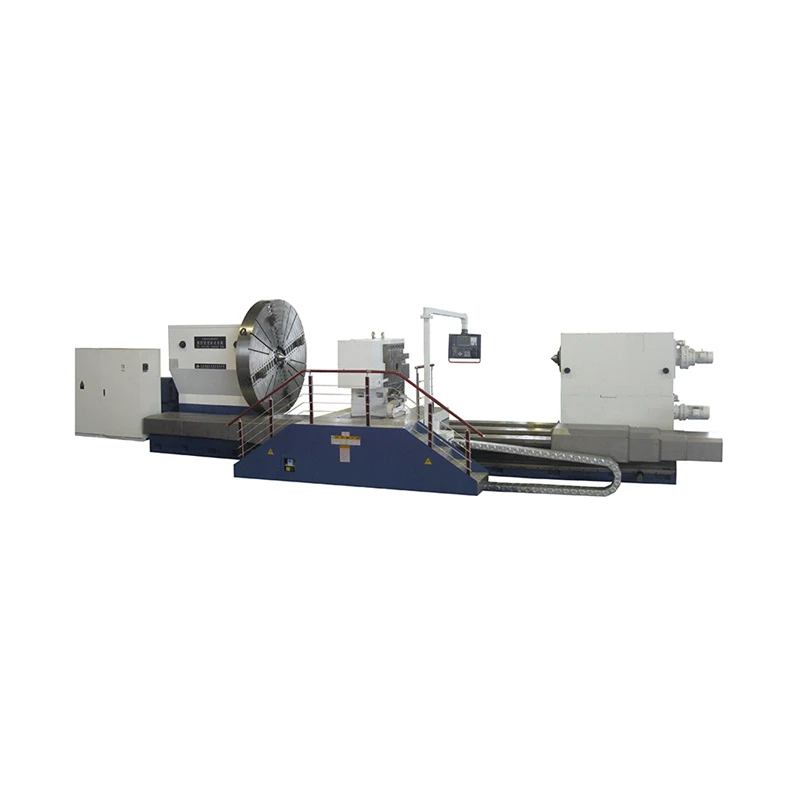

CK61160/200/250 (32/63) heavy-duty horizontal lathe with load capacity of 32 tons and 63 tons. It is suitable for turning outer circles, end faces, grooving, cutting off, boring, turning inner and outer cones and various shaft parts, cylindrical and disc-shaped parts made of different materials using high-speed steel and carbide steel cutting tools. Threads etc. The bed is an overall box-shaped structure with three rectangular guide rails. Cast in one go using high standard cast iron (HT300). After secondary aging treatment, it has good stability. The guide rail has a wide surface (1600mm/2090mm), good rigidity and strong vibration resistance; it adopts steel-inlaid guide rails and is precision ground by imported guide rail grinders to ensure long life, high precision and good retention.

Project	unit	CK61160	CK61200	CK61250	CK61250
Capacities
Swing over bed	mm	1600	2000	2500	2500
Swing over carriage	mm	1250	1600	1850	2200
Max. length of workpiece	mm	4000-20000			10000
Max.turning length	t	32			63
Pan of guideway		Rectangular guide rails
Bed rail width	mm	1600			2090
Spindle nose
Spindle bore	kw	75			144
Taper hole of spindle	º	75		75
Range of spindle speeds		Continuously variable speed
No.of spindle speeds	r/min	0.8-160			0.5-125
Center height from bed	mm	1600/1800			2200
Chuck	knm	80			120
Feed
Min.feed increment	mm/min	1-2000			1-3000
Rapid apeeds	mm	725			1000
Max.travel of X	mm/min	1-4000			1-6000
Longitudinal feed	mm	4000-20000			10000
Turret	Turret working position
Indexing time		V4			Frame type
Indexing repeatility	mm	70*70			80*80
Section of tool shank	kn	80			120
Tailstock	Dia.of tailstock quill
Travel of tailstock quill	mm	300			560
Surface roughness	mm	300			200
Tailstock sleeve taper		100/1:7			160/1:4
Workpiece accuracy	mm/min	3000			2500
Surface roughness	mm/min	664			50
Others	Main power
Lathe mass	mm	15580			18475
Lenth	mm	3500			3622
Width	mm	2280			3250
Height	kg	48000			118000
CNC System		Fanuc Siemens
