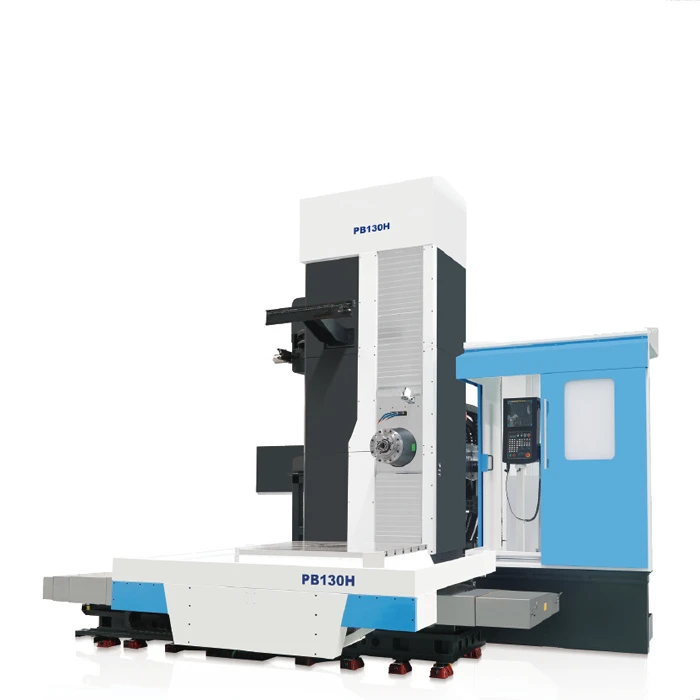

CNC Planing Table Horizontal Milling and Boring Machine
•This series of machines adopts a typical planing table horizontal layout, with the main spindle box mounted on the side, the boring spindle embedded in the milling spindle hole, the worktable placed on the top of the slide seat and rotatable, and the column moving longitudinally;
•The spindle is equipped with a gearbox structure design, which is suitable for high-speed mold cutting and general machining with low speed and high torque;
•Complete multiple processes in one clamping, suitable for milling, boring, drilling, reaming, tapping, turning, turning holes and other processing of large parts;
It is widely used in civil aviation, shipbuilding, railways, mining and metallurgy, engineering machinery, valves, new energy and other industries. It is the first choice equipment for processing parts such as boxes, shells and machine bases.
|
Specifications |
Units |
PB110S |
PB130H |
PB160H |
|
Working desk size |
mm |
1250*1400 |
1600*1800(2000*2000)(2000*2500) |
2000*2000(2000*2500) |
|
Max.load-bearing capacity of workbench |
kg |
5000 |
8000 |
25000 |
|
Number/width/Distance of T-slot |
mm |
28 |
22/28 |
28 |
|
Min. indexing of workbench |
º |
0.001º |
0.001º |
0.001º |
|
Max. working speed |
r/min |
2 |
1.5 |
2 |
|
Table lateral trave l(X-axis) |
mm |
2000 |
2500 |
3000(4000) |
|
Spindle box vertical travel (Y axis) |
mm |
1600 |
2000 |
2000(2500)(3000) |
|
Column longitudinal travel (Z axis) |
mm |
1400 |
1500 |
1600 |
|
Ram axial travel (V axis) |
mm |
|||
|
Boring spindle axial travel (W axis) |
mm |
600 |
600 |
900 |
|
Radial movement of the flat rotating disk slider(U axis) |
mm |
|||
|
Table rotation(B axis) |
º |
360 |
360 |
360 |
|
Fast movement speed(X/Y/Z/V/W/U) |
m/min |
9/9/9/./6/. |
10/10/10/./4/. |
10/10/10/./4/. |
|
Max. cutting feed rate(X/Y/Z/V/W/U) |
m/min |
6/6/6/./6/. |
6/6/6/./2/. |
6/6/6/./2/. |
|
Distance from spindle centerline to worktable |
mm |
100-1700 |
0-2000 |
0-2000 |
|
Distance from spindle end face to centerline of worktable |
mm |
-40-1960 |
100-2200 |
-150-2350 |
|
Boring spindle diameter |
mm |
￠110 |
￠110 |
￠160 |
|
Milling spindle end diameter |
mm |
￠221.44 |
￠221.44 |
￠260 |
|
Spindle taper hole |
BT50 |
BT50 |
BT50 |
|
|
Pull nail specifications |
MAS403 P50T-1 |
MAS403 P50T-1 |
MAS403 P50T-1 |
|
|
Spindle motr power |
KW |
15/18.5 |
18.2/22 |
30/37(45/55) |
|
Spindle speed |
rpm |
5-2500 |
10-2500 |
10-2000 |
|
Max. torque of milling spindle |
N.m |
1205/1487(30min) |
2150/2590 |
2553/3063(3831/4597) |
|
Max. axial resistance |
N |
15000 |
15000 |
250000 |
|
Flat disc diameter |
mm |
|||
|
Flat rotating disc speed |
rpm |
|||
|
Max. torque of flat rotating disc |
N.m |
|||
|
Min. setting unit of machine tool |
mm |
0.001 |
0.001 |
0.001 |
|
Positioning accuracy(X/Y/Z/V/W) |
mm |
0.02/0.02/0.02/./0.02 |
0.25/0.02/0.02/./0.025 |
0.25/0.02/0.02/./0.025 |
|
Repeatability(X/Y/Z/V/W) |
mm |
0.01/0.01/0.01/./0.015 |
0.017/0.015/0.015/./0.018 |
0.017/0.015/0.015/./0.018 |
|
Positioning accuracy(B) |
10" |
10" |
10" |
|
|
Repeatability(B) |
6" |
6" |
6" |
|
|
CNC system |
FANUC (SIEMENS) |
FANUC (SIEMENS) |
FANUC (SIEMENS) |
|
|
Number of CNC coordinate axes |
Five-axis four linkage |
Five-axis four linkage |
Five-axis four linkage |
|
|
Automatic chip conveyor |
Spiral chip conveyor |
Spiral chip conveyor |
Spiral chip conveyor |
|
|
Tool magazine(optional) |
40/60 |
40/60 |
40/60 |
|
|
Total power capacity |
kva |
45 |
80 |
88 |
|
Air source/air pressure |
500L/min 6-8bar |
500L/min 6-8bar |
500L/min 6-8bar |
|
|
Machine weight |
kg |
20000 |
30000 |
42000 |
|
System Configuration |
FANUC SIEMENS(customers can choose by themselves) |
|||
