Performance characteristics
*The inverted T-type bed structure has a large three-axis movement stroke and a wide processing range.
*With movable column and front-mounted spindle box, the machine tool has a compact overall structure, small thermal deformation, strong rigidity and high precision.
*Suitable for processing complex parts such as box parts, plates and molds in aviation, aerospace, military, automobile, environmental
Ideal processing equipment for insurance, mold, valve body and other industries
Standard configuration
*FANUC Oi MF CNC system
*Maximum spindle speed 3000rpm
Equipped with integrated gear transmission
Large output torque, more suitable for low
Fast and heavy cutting
*32 chain tool magazine
*It is better to configure a constant temperature oil cooler Guaranteed spindle and main speed change Box accuracy and stability
Optional
*Siemens 828D CNC system
*ZF gear transmission
*Tool variable pressure internal cooling system
*60 chain tool magazine
|
Specifications |
Units |
HMC1200D |
HMC1000D |

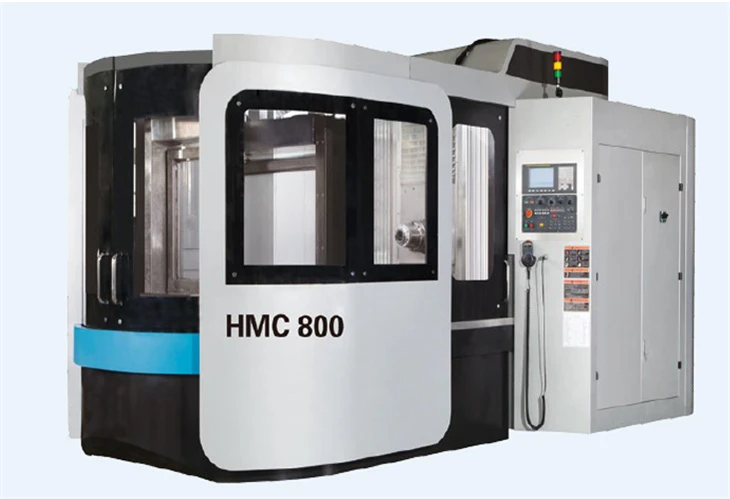

HMC800 |
HMC630 |
|
Table travel (X,Y,Z) |
mm |
2000*1200*1300 |
1600*1200*1600 |
1200*1000*1000 |
1000*800*800 |
|
Table size |
mm |
1200*1200 |
1000*1000 |
800*800 |
630*630 |
|
Max. load of worktable |
kg |
5000 |
3000 |
2000 |
1200 |
|
Worktable indexing |
1º*360º |
1º*360º |
1º*360º |
1º*360º |
|
|
Worktable positioning accuracy |
10" |
10" |
10" |
10" |
|
|
Worktable re-positioning accuracy |
2" |
2" |
2" |
2" |
|
|
Rapid feed speed |
m/min |
18/18/18 |
18/18/18 |
32 |
32 |
|
Spindle speed |
rpm |
30-3000 |
30-3000 |
30-3000 |
30-3000 |
|
Torque of spindle |
N.m |
1000(gear) |
1000(gear) |
770 |
235(belt) |
|
Tool shank type |
BT50 |
BT50 |
BT50 |
BT50 |
|
|
Main motor power |
KW |
18.5/22 |
18.5/22 |
18.5/22 |
15 |
|
Tool magazine capability |
qty |
32 |
32 |
30 |
24(disc) |
|
Tool weight |
kg |
25 |
25 |
25 |
25 |
|
Positioning accuracy (X,Y,Z) |
mm |
±0.005JIS |
±0.005/300JIS |
±0.005/300JIS |
±0.005/300JIS |
|
Repeat positioning accuracy (X,Y,Z) |
±0.003JIS |
±0.003/300JIS |
±0.003/300JIS |
±0.003/300JIS |
|
|
Machine weight |
26000 |
24000 |
20000 |
16000 |
