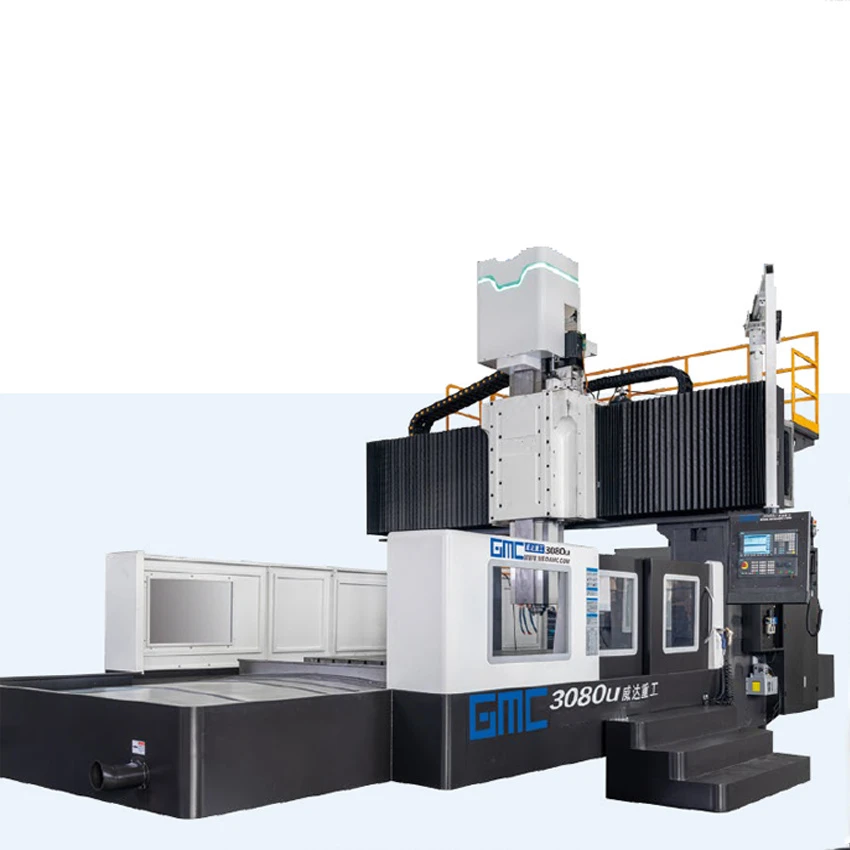

Moving Beam Pentahedral Machining Center

*The latest machine structure, modular structure design, and the best machine tool rigidity.

*The X and Y axes adopt heavy-duty linear roller guides, and the Z-axis square ram has an eight-sided contact hard rail structure.

X-axis high-precision rack and pinion transmission adopts dual motors and dual planetary reducers for electrical backlash elimination.

The three axes are equipped with German Alpha precision planetary reducer.

*Three-axis independent lubricating oil recovery system.

The "line-hard" combination of vertical and orthogonal linear guide rails and sliding hard rails for cross beams.

* Balance cylinders are symmetrically arranged on both sides of the ram, and the Z-axis response speed is fast.

*The main transmission is equipped with a self-made two-speed gear transmission mechanism with large output torque.

*Full-automatic exchange of milling heads, automatic 5° indexing, tooth disc positioning, indexing accuracy of ±3 secondsc

It can perform high-precision cutting on planes, curved surfaces, parallel hole systems, orthogonal hole systems, etc. in three-dimensional space to complete milling, boring, drilling (drilling, guarding, reaming), tapping,

* Countersinking and other processes can achieve complete pentahedral processing.

*Swinging head warehouse automatic exchange milling head system, optional milling heads: ① right-angle milling head ② universal milling head ③ extension milling head ④ narrow right-angle extension milling head, etc.

* Equipped with disc-type or chain-type tool magazines, optional chain-type vertical and horizontal conversion tool magazines can realize vertical and horizontal tool changes and improve processing efficiency.

* Optional spiral or chain plate chip conveyor. Optional 2Mpa, 5Mpa, 7Mpa high-pressure spindle center water outlet system.

*Optional automatic tool measurement system and automatic workpiece measurement system.

*Applicable to various mechanical processing fields such as automobiles, ships, printing, packaging, textiles, military industry, molds, etc.
