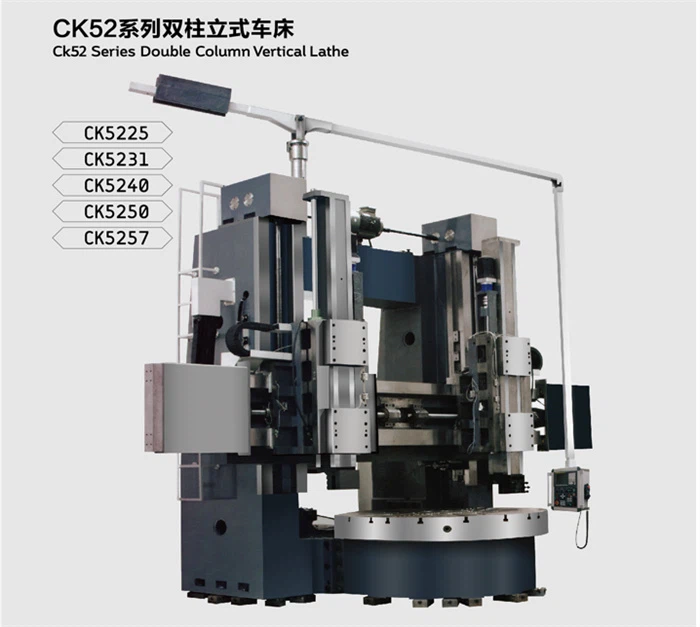

- Mechatronics vertical design, compact and reasonable overall layout, easy installation and maintenance;
- The base adopts a thermally symmetrical structure, which overcomes the impact of spindle temperature rise on machining accuracy;
- The X/Z axis screws are all pre-tensioned parts, which can reduce the impact of temperature rise during processing on the accuracy of the machine tool;
- Vertical clamping ensures a close fit between the workpiece and the fixture, allowing the workpiece to achieve high positioning accuracy and processing accuracy;
- It is suitable for valves, chemicals, medical machinery and other industries, and is suitable for processing parts with rotating surfaces of various complex shapes such as large, heavy and thin
|
Parameters/model |
Unit |
CK5263S*H/65 |
CK5263S*H/80 |
CK5263S*H/100 |
CK5280S*H/150 |
CK5280S*H/200 |
CK52100S*H/200 |
CK52100S*H250 |
CK52100S*H300 |
|
Max. turning diameter |
mm |
6300 |
6300 |
6300 |
8000 |
8000 |
10000 |
10000 |
12500 |
|
Worktable diamete |
mm |
5700 |
5700 |
5700 |
7100 |
7100 |
8000 |
8000 |
8000 |
|
Max.turning height |
mm |
3150/3500 |
3150/4000 |
3150/4000 |
4000/4500 |
4000/4500 |
4000/4500 |
4000/4500 |
4500/5000 |
|
Max.Weight of work piece |
t |
65 |
80 |
100 |
100 |
150 |
200 |
250 |
300 |
|
Worktable max. torque |
KN.m |
250 |
250 |
250 |
460 |
460 |
540 |
640 |
640 |
|
Range of table speeds |
r/min |
0.42-42 |
0.42-42 |
0.32-32 |
0.16-16 |
0.16-16 |
0.16-16 |
0.16-16 |
0.16-16 |
|
Max. cutting force of rail head |
KN |
63 |
63 |
70 |
80 |
80 |
100 |
120 |
120 |
|
Range of feed rates |
mm/min |
0.1-500 |
0.1-500 |
0.1-500 |
0.1-500 |
0.1-500 |
0.1-500 |
0.1-500 |
0.1-500 |
|
Horizontal travel of raihead |
mm |
3400 |
3400 |
3400 |
4400 |
4400 |
5400 |
5400 |
6900 |
|
Ram trave of rail head |
mm |
1200/1600 |
1200/1600 |
1200/1600 |
1600/1800 |
1600/1800 |
1600/1800 |
1600/1800 |
1600/1800 |
|
Raoid traverse of tool heads |
mm/min |
3500 |
3500 |
3500 |
3500 |
4000 |
4000 |
4000 |
4000 |
|
Height of tool bar section(WxH) |
mm |
50*50 |
50*50 |
50*50 |
60*60 |
60*60 |
80*80 |
80*80 |
100*100 |
|
Power of main motor |
kw |
90 |
90 |
110 |
110 |
132 |
132 |
132 |
132 |
|
Overalldimensions of machine(LxWxH) |
cm |
1150*790*853/933 |
1250*750*940/1070 |
1250*780*960/1090 |
1730*900*1260/1310 |
1730*900*1260/1310 |
1960*1010*1260/1310 |
1960*1010*1260/1310 |
2420*1200*1380/1430 |
|
Weight of machine (Approx.) |
t |
104/108 |
130/135 |
140/150 |
190/195 |
245/250 |
315/325 |
380/390 |
430/440 |
|
System Configuration |
FANUC SIEMENS(customers can choose by themselves) |
||||||||
