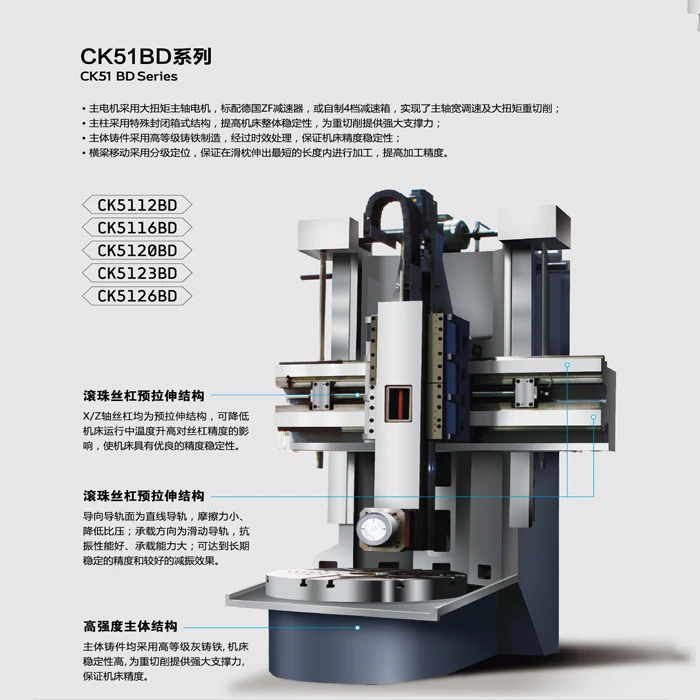

- The main motor adopts a high-torque spindle motor, equipped with a German ZF reducer as standard, or a self-made 4-speed reducer, realizing wide spindle speed regulation and high-torque heavy cutting;
- The main column adopts a special closed box structure to improve the overall stability of the machine tool and provide strong support for heavy cutting;
- The main casting is made of high-grade cast iron and undergoes aging treatment to ensure the accuracy and stability of the machine tool;
- The crossbeam movement adopts graded positioning to ensure processing within the shortest length of the ram extension and improve processing accuracy.
|
Parameters/model |
Unit |
CK5112BD |
CK5116BD |
|
Vertical turret max. turning diameter |
mm |
1250 |
1600 |
|
Worktable diameter |
mm |
1000 |
1400 |
|
Max.turning height |
mm |
1000 |
1200 |
|
Max.Weight of work piece |
t |
3.2 |
5 |
|
Worktable rotary speed range |
r/min |
1-200 |
3.2-160 |
|
Worktable rotary speed grade |
step |
Fourth gear infinite |
Fourth gear infinite |
|
Worktable max.torque |
Kn/m |
18 |
25 |
|
Turret feeding garde |
step |
stepless |
stepless |
|
Vertical turret max.cutting force |
KN |
18 |
25 |
|
Ram horizontal stroke |
mm |
700 |
920 |
|
Ram vertical stroke |
mm |
650 |
800 |
|
Beam stroke |
mm |
650 |
850 |
|
Turret fast moving speed |
mm/min |
2000 |
2000 |
|
Beam life and down speed |
mm/min |
440 |
440 |
|
Cutter bar section size(L*W) |
mm |
30x40 |
30x40 |
|
Main motor power |
kW |
22 |
30 |
|
System configration |
GSK/FANUC/SIEMENS |
GSK/FANUC/SIEMENS |
|
|
CNC axis |
X & Z axis Linkage |
X & Z axis Linkage |
|
|
Position precision |
mm |
0.03 |
0.025 |
|
Repeat position precision |
mm |
0.015 |
0.01 |
|
Production size precision |
IT7 |
IT7 |
IT7 |
|
Machine's weight |
t |
12.5 |
16.5 |
|
System Configuration |
FANUC SIEMENS(customers can choose by themselves) |
||
