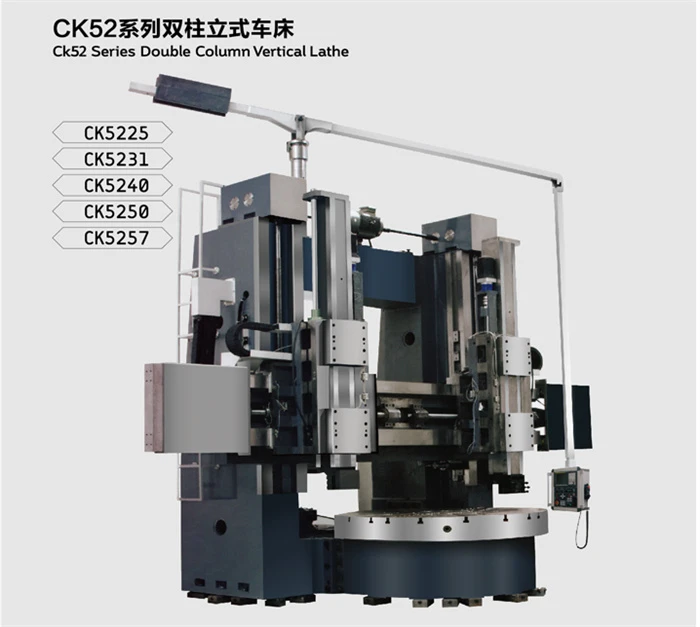

- This series of machines adopts a fully cast structure design with gantry-type columns, which makes the product more stable; the symmetrical structure design reduces the impact of spindle temperature rise on accuracy;
- The columns are fixed on the base and foundation at the same time, making the whole machine more rigid;
- The crossbeam movement adopts graded positioning to ensure that processing is carried out within the shortest length of the ram to improve processing accuracy; the VNL250H/250HK series is equipped with a double tool rest, which can perform roughing and finishing at the same time, improving processing efficiency.
|
Parameters/model |
Unit |
CK5225xH/15 |
CK5231* H/20 |
CK5240x H/20 |
CK5240xH/32 |
CK5250*H/40 |
CK5250x H/65 |
CK5250* H/80 |
CK5257xH/65 |
|
Max. turning diameter |
mm |
2500 |
3200 |
4000 |
4000 |
5000 |
5000 |
5000 |
5700 |
|
Worktable diameter |
mm |
2250 |
2830 |
2830 |
3200 |
4200 |
4500 |
4500 |
5200 |
|
Max. turning height |
mm |
1600/2000 |
2000/2500 |
2000/2500 |
2000/2500 |
2500/3150 |
2500/3150 |
3150/4000 |
2500/3150 |
|
Max.Weight of work piece |
t |
15 |
20 |
20 |
32 |
40 |
65 |
80 |
65 |
|
Worktable max.torque |
KN.m |
63 |
63 |
63 |
70 |
80 |
100 |
150 |
100 |
|
Range of table speeds |
r/min |
2-36 |
2-63 |
2-63 |
0.42-42 |
0.42-42 |
0.42-42 |
0.42-42 |
0.42-42 |
|
Max. cutting force of rail head |
KN |
30 |
35 |
35 |
40 |
50 |
60 |
63 |
60 |
|
Range of feed rates |
Mm/min |
0.2-145 |
|||||||
|
Horizontal travel of raihead |
mm |
1400 |
1750 |
2150 |
2150 |
2765 |
2765 |
2765 |
3000 |
|
Ram trave of rail head |
mm |
1000 |
1200 |
1200 |
1200 |
1200/1400 |
1200/1400 |
1200/1600 |
1200/1600 |
|
Raoid traverse of tool heads |
Mm/min |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
|
Height of tool bar section(WxH) |
mm |
40*50 |
40*50 |
40*50 |
50*50 |
50*50 |
50*50 |
50*50 |
50*50 |
|
Power of main motor |
kw |
55 |
55 |
55 |
75 |
75 |
90 |
90 |
110 |
|
Overalldimensions of machine(LxWxH) |
cm |
540*470*480/520 |
610*480*520/750 |
690*510*640/690 |
690*550*640/690 |
1000*650*710/840 |
1000*700*723/853 |
1000*700*940/1070 |
1070*750*723/853 |
|
Weight of machine (Approx.) |
t |
38/40 |
40/42 |
46/48 |
53/54 |
66/68 |
83/86 |
120/124 |
87/91 |
|
System Configuration |
FANUC SIEMENS(customers can choose by themselves) |
||||||||
