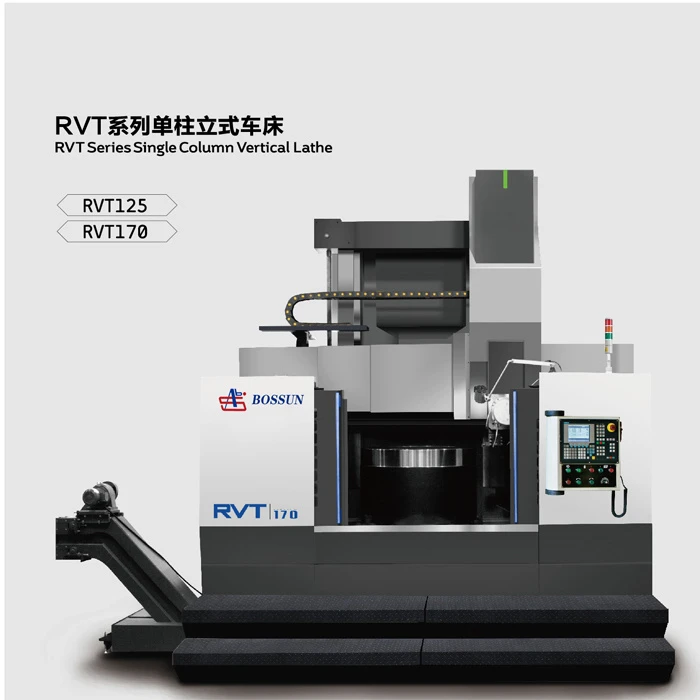

RVT series single column vertical lathe is high technology, Mechatronics products, Which is absorbed in Contemporary and advanced design & production technology. adopts CAD to optimize the design method, the implementation of the latest national accuracystandards. and stiffness standards of our factory,configuration of advanced features at home and abroad, the structural performance of the powerful cutting, table overweight, machine dynamic and static has high stiffmess, the campaign safe and reliable,long service life, High processing efficiency.

Parameters/model	Unit	RVT125	RVT170
Max.turining diameter	mm	Φ1250	Φ1700
Max.turning height	mm	1000	1200
Max.Weight of work piece	t	5(<100r/min)	8(<80r/min)5(All rotary spe
Worktable diameter	mm	Φ1100	Φ1400
Worktable variable speed grade		lI gear steples	IIgear steples
Worktable max, torque	r/min	3.15-400	3.15-300
Worktable max. torque	Kn/m	10	10
Main motor power(AC)	Kw	28/37	S128/S238 (30min)
Vertical turret max.Cutting force	kn	16	16
Vertical turret horizontal stroke	mm	650/800	800
ertical turret feeding grade(X axis/Z axis)	Mm/min	10000/12000	12000
Vertical turret horizontal stroke	mm	-20-850	-20-1000
Vertical turret feeding grade(X axis/Z axis)	step	stepless	stepless
Vertical turret feeding grade(X axis/Z axis)	Mm/min	0.1-1000	0.1-1000
Cutter bar section height	mm	32*32	40*40
Square size	mm	200*200	220*220
Tram	mm	8/12	8/12
Beam stroke	mm	700	700
Beam moving motor	Mm/min	410	410
Beam lift and down motor power	kw	4.0	5.5
Machine's weight	t	17/18	21
Machine demension(L＊W＊H	mm	505030004105	540035004550
System Configuration	FANUC SIEMENS(customers can choose by themselves)
