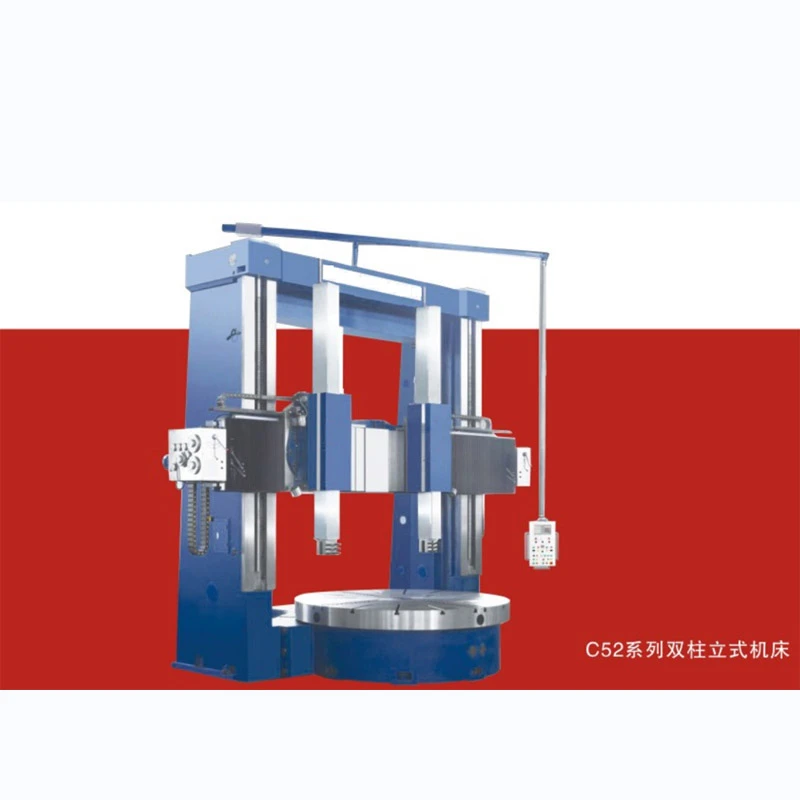

1. This series of machine tools is used for mechanical processing in various industries, and can be used for roughing and finishing of internal and external cylindrical surfaces, conical surfaces, end faces, grooving, etc.
2. The main drive of the machine tool is driven by an AC motor. AC via 16-level or 4-level spindle speed change mechanism;. Realize the speed range of the workbench.
3. The main shaft of the workbench adopts high-precision adjustable radial same-clearance double-row short cylindrical roller bearings for centering. The constant current static pressure guide rail is used in the axial direction, so that the workbench has the characteristics of high rotation precision, large load-bearing capacity and small thermal deformation.
4. The machine tool can adopt a constant temperature cooling device according to the customer's needs. An independent liquid pressure station system can be installed to ensure the processing accuracy of the machine tool and the stability of various technical indicators.
5. Tracking surfaces such as columns, beams, and vertical rams are precision ground. High precision and good output.
6. The machine tool electrical appliances use PLC control system, thus ensuring the stable and reliable quality of the electrical appliances.
7. The ram is changed to a square ram. The ram has a large cross-section and good rigidity. The cross beam and the contact surface between the upper part and the drum adopt a steel-inlaid structure.
|
Specification |
Unit |
C5225*H/20 |
C5232*H/20 |
C5240*H/20 |
|
Max.turning diameter |
mm |
2500 |
3200 |
4000 |
|
Table diameter |
mm |
2250 |
2500 |
2830 |
|
Max.height of workpiece |
mm |
1600/2000 |
2000/2500 |
2000/2500 |
|
Max.weight of workpiece |
t |
20 |
20 |
20 |
|
Max.torque of table |
KN.m |
63 |
63 |
63 |
|
Range of table speeds |
r/min |
2-63 |
2-63 |
2-63 |
|
Max.cutting force of rail head |
KN |
30 |
35 |
35 |
|
Swive of rail head |
º |
±30º |
±30º |
±30º |
|
Range of feed rates(steps12) |
mm/min |
0.2-145 |
0.2-145 |
0.2-145 |
|
Horizontal travel of raihead |
mm |
1400 |
1750 |
2150 |
|
Ram trave of rail head |
mm |
1000 |
1250 |
1250 |
|
Raoid traverse of tool heads |
mm/min |
1550 |
1550 |
1550 |
|
Height of tool bar section |
mm |
40*50 |
40*50 |
40*50 |
|
Power of main motor |
KW |
55 |
55 |
55 |
|
Overall dimensions(L*W*H) |
mm |
540*470*480/520 |
610*480*520/570 |
690*510*640/690 |
|
Weight of machine(Approx) |
t |
34/36 |
38/40 |
44/46 |
