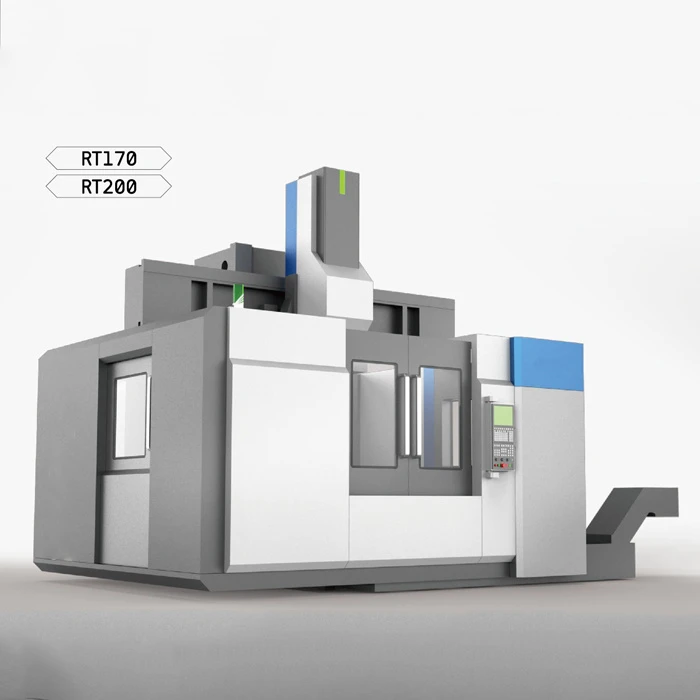

Singie Column Vertical Lathe

RT series single column vertical lathe is high technology, Mechatronics products,Which is absorbed in Contemporary and advanced design & production technology, adopts CAD to optimize the design method, the implementation of the latest national accuracystandards. and stiffness standards of our factory,configuration of advanced features at home and abroad, the structural performance of the powerful cutting,table overweight, machine dynamic and static has high stiffmess, the campaign safe and reliable, long service life, High processing efficiency.

Parameters／model	Unit	RT170	RT200
Max.turning diameter	mm	1700	2000
Worktable diameter	mm	1500	1800
Max. turning height	mm	1200	1250
Max.Weight of work piece	t	5	10
Range of table speeds	r/min	5-200	2-15
Worktable rotary speed grade	class	Second gear infinite	Second gear infinite
Worktable max.torque	Kn/m	20	25
Range of feed rates	class	Promise	Promise
Vertical turret max.cutting force	KN	18	22
Ram horizontal stroke	mm	915	920
Ram vertical stroke	mm	800	800
Beam stroke	mm	1250	850
Turret fast moving speed	mm/min	2000	1-8000
Beam life and down speed	mm/min	440	440
Height of tool bar section(WxH)	mm	30x40	30x40
Power of main motor	kW	30	37
Repeat position precision	mm	0.01mm	0.015mm
Machine' s weight	t	17.5	26
System Configuration	FANUC SIEMENS(customers can choose by themselves)
