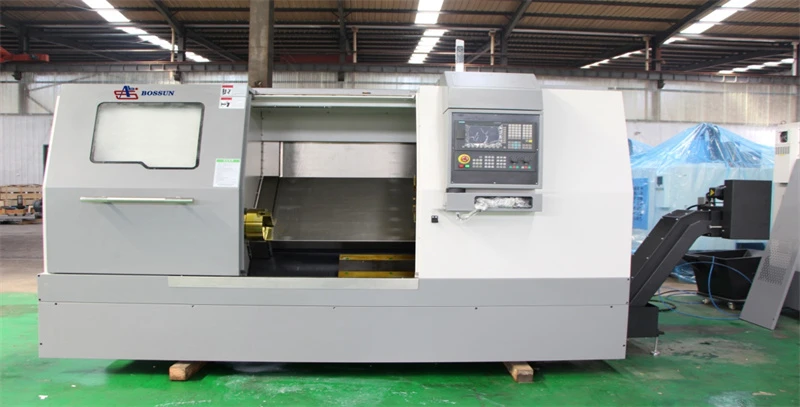

- The X / Z axes are directly driven by high-specification AC servo motors, with rapid traverse up to 30 m/min.
- The electric spindle drive device has the advantages of small inertia, fast response, high power, high speed, high precision, and low noise. The spindle has a built-in encoder to achieve precise positioning and comes standard with the C-axis function. The spindle is equipped with a separate liquid circulation cooling device for heat dissipation.
- The use of arc-shaped teeth to precisely position the cutterhead ensures high rigidity, high precision, high stability and high durability under any cutting conditions.
|
Specifications |
unit |
TCK600 |
Tck550 |
|
Swing over bed |
mm |
￠630 |
￠550 |
|
Maximum turning diameter on carriage |
mm |
￠400 |
￠320 |
|
Maximum processing length |
mm |
600/900 |
|
|
Spindle head form |
mm |
A2-8/A2-11 |
A2-8 |
|
Spindle motor power |
Kw |
11-15(Servo) |
11-15(Servo) |
|
Maximum spindle speed |
r/min |
2000/2500 |
2000 |
|
Through hole diameter of spindle |
mm |
￠90/105 |
￠90 |
|
Inner diameter of pull through hole |
mm |
￠75/90 |
￠75 |
|
X-axis stroke |
mm |
315 |
300 |
|
Z-axis stroke |
mm |
750/1000 |
750/1000 |
|
Servo motor torque X/Z |
N.m |
15/15 |
15/15 |
|
Turiet form |
mm |
12 station servo/Hydraulic(Optional powered tool turret) |
|
|
Tool size (turning/boring) |
mm |
25*25/40 |
25*25/40 |
|
Specification of X/Z lead screw |
4010 |
4010 |
|
|
Repeat positioning accuracy |
mm |
±0.004 |
±0.004 |
|
Tailstock sleeve diameter/stroke |
mm |
￠100/120 |
￠100/120 |
|
Taper hole in sleeve |
MT |
6 |
5/6 |
|
Dimensions |
m |
4.7/5.9/6.6*2.1*2.2 |
4.6/5.8/6.5*2.2*2.3 |
|
Machine weight(approx.) |
T |
9/11/13/16 |
7.5/9/10.5/12 |
