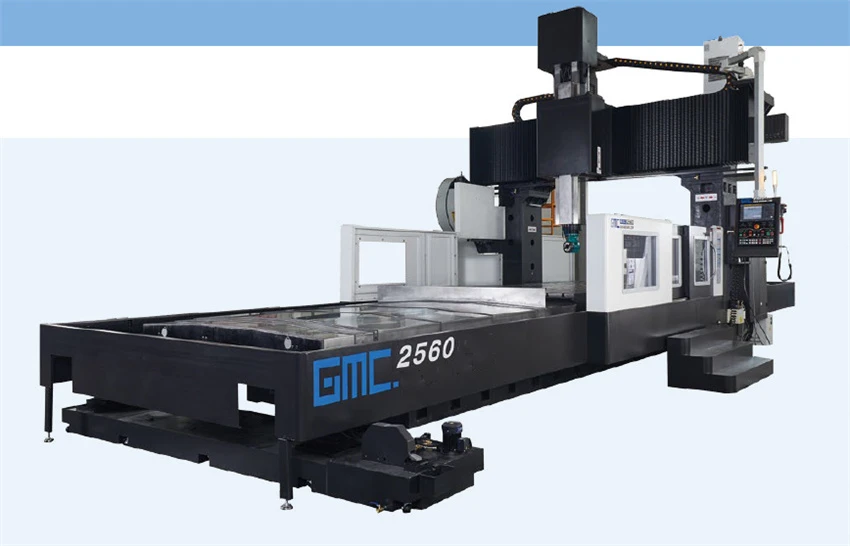

*Please series models adopt a fixed gantry frame and a mobile worktable structure, which have the characteristics of high rigidity, high precision, large torque, dynamic characteristic values, etc.;
The main key parts such as the bed, column, saddle, spindle box, and workbench are made of high-strength and high-quality cast iron, with resin sand molding and good stability;
* Large-capacity square ram design, enlarged main drive spindle specifications, main drive low-speed transmission ratio up to 1:8, achieving high torque with lower power;
•Adopt internationally advanced machine tool design concepts and use the most advanced and accessible functional accessories;
It is suitable for machining in fields such as valves, auto parts, civil aviation, engineering machinery and other industries.
|
Specifications |
Units |
GMC2560u |
GMC2540 |
|
X/Y/Zaxis travel |
mm |
6200/3700/1000 |
4200/3700/1000 |
|
Distance from spindle nose to worktable surface |
mm |
250-1250(Standard configuration)450-1450 or 500-1500(Optional) |
|
|
Gantry effective width |
mm |
3300 |
3300 |
|
Worktable size |
mm |
6000/2500 |
4000/2500 |
|
Width/distance of T-slot |
mm |
28/220/11 |
28/220/11 |
|
Max.load of worktable |
kg |
24000 |
16000 |
|
Spindle speed |
rpm |
10-3000 |
10-3000 |
|
Main motor power |
kW |
22/26 |
22/26 |
|
Spindle taper (Horizontal/Vertical) |
BT50 |
BT50 . |
|
|
Max. spindle torque |
N.m |
850 |
850 |
|
Rapid feed speed(X.Y.Z axes) |
mm/min |
10000/12000/10000 |
12000/12000/10000 |
|
Feed speed (X,Y,Z axes) |
mm/min |
1-6000 |
1-6000 |
|
Positioning accuracy(X.Y,Z axes) |
mm |
±0.005/300 JIS |
±0.005/300 JIS |
|
Repeat positioning accuracy |
mm |
±0.003/1000 JIS |
±0.003/1000 JIS |
|
Overall dimension |
mm |
13670x6080x5480 |
11120x6080x5480 |
|
Machine weight |
kg |
63000 |
55000 |
