*The latest machine structure, modular structure design, and the best machine tool rigidity.

*The bridge-type gantry structure occupies about 56% of the area of the traditional mobile workbench.

*Fixed workbench doubles the load-bearing capacity, and the machine tool processing characteristics are not affected by the quality of the workpiece.

*The three major components are connected into an integrated bridge bed structure to improve the overall structural rigidity.

*The X-axis of the beam adopts a double-column and center-of-gravity-driven structural design to improve processing stability.

*X, Y, and Z axes all use heavy-duty linear roller guides.

*High-speed, high-precision, high-power built-in spindle design.

*High-power precision spindle temperature-controlled water cooling machine.

*X-axis is equipped with German Alpha precision planetary reducer.

*X-axis synchronous dual drive combined with full closed-loop control improves accuracy and reliability.

Specifications	Units	GMC1827b	GMC2232b
X-axis travel	mm	2700	3200
Y-axis travel	mm	1800	2200
Z-axis travel	mm	1000	1000
Distance from spindle nose toworktable surface	mm	350-1350	350-1350
Worktable size	mm	2500/1600	3000/2000
T groove size	mm	28/200/9	28/220/9
The workbench bearing	Kg/m2	5000	5000
Maximum spindle speed	rpm	18000	18000
Spindle power	kw	30/35	30/35
Spindle bore taper		HSK-A63	HSK-A63
spindle torque	N.m	94.9/111	94.9/111
Axis rapid traverse speed	mm/min	20000	20000
Feed speed (X.Y.Z axes)	mm/min	0-15000	0-15000
Positioning accuracy(XYZ axes)..	mm	0.015/0.012/0.010	0.016/0.013/0.010
Repeat positioning accuracy	mm	0.010/0.010/0.008	0.010/0.010/0.008
Numerical control system		SIEMENS828D	SIEMENS828D
Machine covers an area of	mm	5800/5000/4780	6150/5330/4780
power Electricity consumption	kvA	100	100
Machine weight	kg	40000	46000

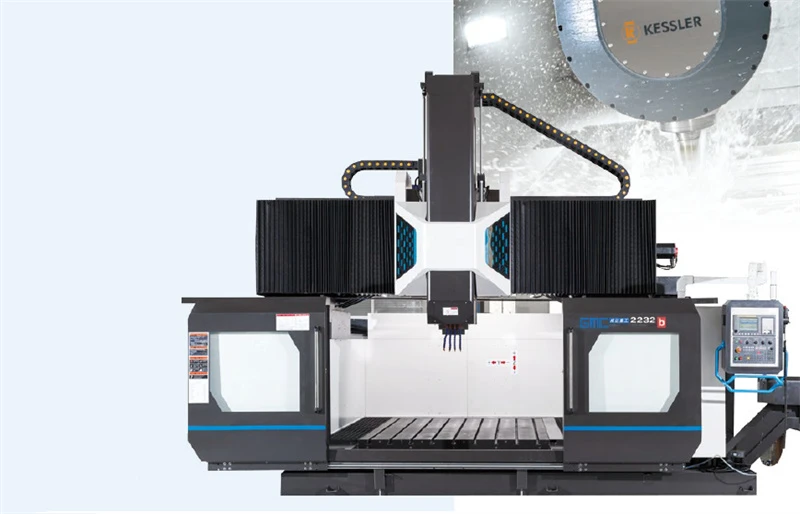

Bridge Machining Center
