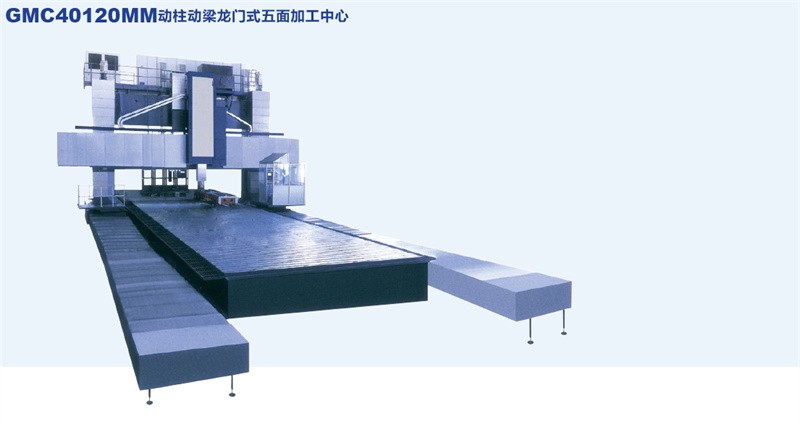

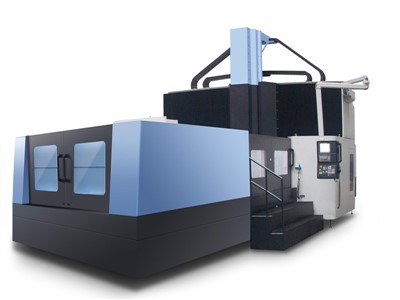

performance characteristics
*The basic parts of the machine tool are all made of high-quality high-strength castings and gantry frame structure. The whole machine has good rigidity, shock resistance and accuracy maintenance.
*Drilling, expanding, reaming, tapping and other processes can achieve five-sided processing. It is especially suitable for processing box parts and miscellaneous-shaped parts in the automotive, aerospace, metallurgical mining, machine tool manufacturing and other industries.
Standard configuration
*CNC system: Siemens 840D
*Transmission full gear transmission
*Z-axis hydraulic balance
*Y-axis static pressure guide rail
*X, W fully closed loop grating ruler
*Spindle constant temperature cooling system
Select configuration
*40T/60T chain tool magazine
*Automatic chip removal system
*Z axis, Y axis fully closed loop grating ruler
*Various automatic attachment milling heads
|
Specifications |
Units |
GMC40100mm |
GMC40120mm |
|
X-axis travel |
mm |
10000＋900 Head changing stroke |
12000＋900 Head changing stroke |
|
Y-axis travel |
mm |
5200 |
5200 |
|
Z-axis travel |
mm |
1500 |
1500 |
|
W-axis travel |
mm |
2000 |
2000 |
|
Worktable size |
mm |
4000x10000 |
4000x12000 |
|
Max. load of worktable |
t/㎡ |
15 |
15 |
|
Width/distance of T-slot |
mm |
36 |
36 |
|
Gantry effective width |
mm |
5500 |
5500 |
|
Spindle taper (Horizontal Vertical) |
BT60 (BT50) |
BT60(BT50) |
|
|
Main motor power |
kW |
58 |
58 |
|
Spindle speed |
r/min |
5-2000 |
5-2000 |
|
Spindle rated torque |
N.m |
3500 |
3500. |
|
Feed speed (X.Y.Z axes) |
mm/min |
1-5000 |
1-5000 |
|
Rapid feed speed (X.Y.Z axes) |
mm/min |
80000/80000/80000/2000 |
80000/80000/80000/2000 |
|
Positioning accuracy(X.Y.Z axes) |
mm |
±0.02／1000(With grating ruler) |
±0.02／1000(With grating ruler) |
|
Repeat positioning accuracy |
mm |
±0.015 |
±0.015 |
|
Overall dimension |
mm |
24000x12000x9000 |
26000x12000x9000 |
|
Machine weight |
kg |
260000 |
290000 |
