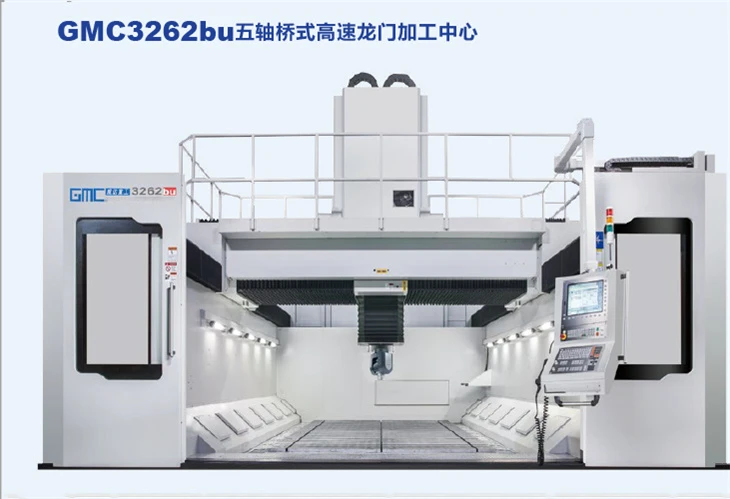

5-Axis Bridge Machining Center

*The latest machine structure, modular structure design, and the best machine tool rigidity.

*The bridge-type gantry structure occupies about 56% of the area of ​​the traditional mobile workbench.

*Fixed workbench doubles the load-bearing capacity, and the machine tool processing characteristics are not affected by the quality of the workpiece.

*The integrated bed worktable and columns form a U-shaped frame structure, which has strong structural rigidity and high stability.

*The column adopts "honeycomb type" bionic structural design, which has high structural rigidity.

* The long-span and high-rigidity gantry welded beam using a cable fine-tuning mechanism effectively solves the problem of low long-term accuracy and inability to adjust long-span beams.

*The beam, slide plate and ram all adopt the "box-in-box" structure, which has the characteristics of strong structural rigidity and excellent thermal balance performance.

*The X, Y, and Z axes all adopt "hollow screw" and "nut circulating oil cooling" technology, which can effectively control the impact of temperature rise on the accuracy of the machine tool.

*Both X and Z axes adopt double ball screw synchronous double drive technology.

*The X, Y, and Z axes all use heavy-duty linear roller guides with strong load-bearing capacity.

*The X, Y and Z axes adopt grease lubrication system, which is environmentally friendly and reliable.

*Balance cylinders are symmetrically arranged on both sides of the ram, and the Z-axis responds quickly.

*Italian HSD-810 double-arm fork-type five-axis milling head: torque motor direct drive, permanent precision. Encoder direct test, absolutely

to accuracy. A/C axis speed: 30rpm, A/C axis braking torque: 4000/4000Nm, A/C axis cooling: constant temperature water cooling.

*Each axis adopts full closed-loop grating ruler control to improve accuracy and reliability.

*Equipped with German BLUM laser tool setter, the tool can be set quickly, stably and reliably.

*Standardly equipped with transverse chain plate chip conveyor.

*Standard equipped CNC system Siemens 840DSL

*Optional CNC system HEIDENHAIN TNC640

*The standard bucket hat type 24-tool magazine is optional, with optional 32-tool and 40-tool magazines to improve processing efficiency.

*Optional automatic tool measurement system and automatic workpiece measurement system.

*Applicable to various mechanical processing fields such as automotive molds, aerospace, printing, packaging, textiles, and military industry,

*Optional 15000rpm-(HSK-A100 high-rigidity electric spindle).

*Optional Z-axis travel 1250mm
